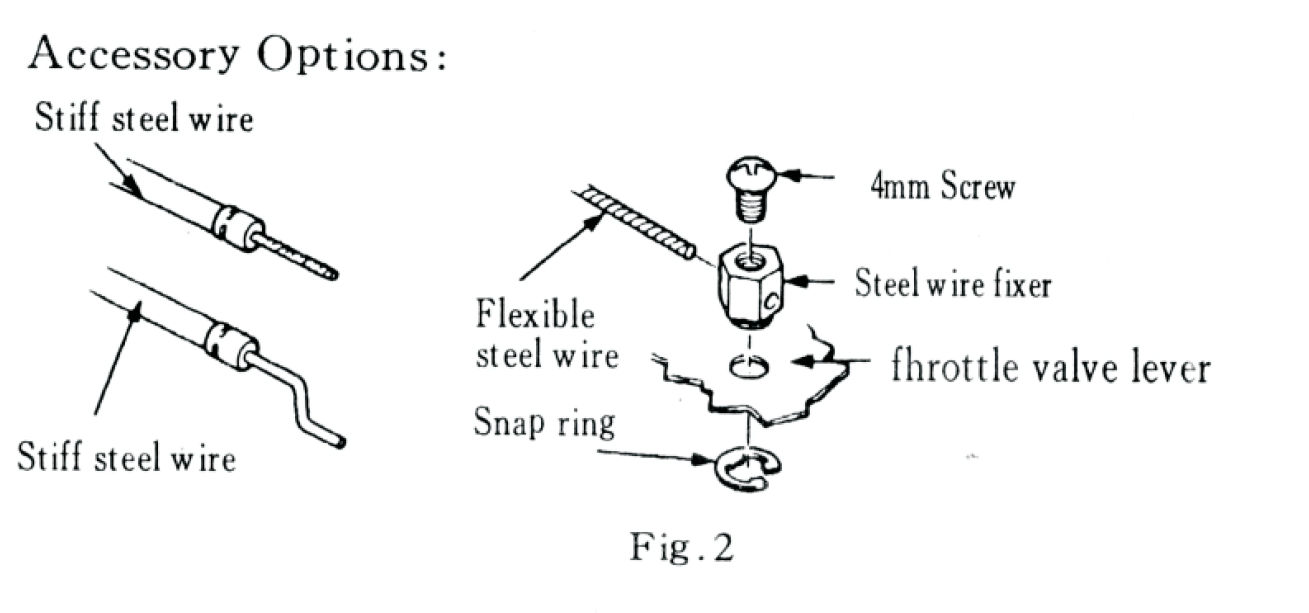

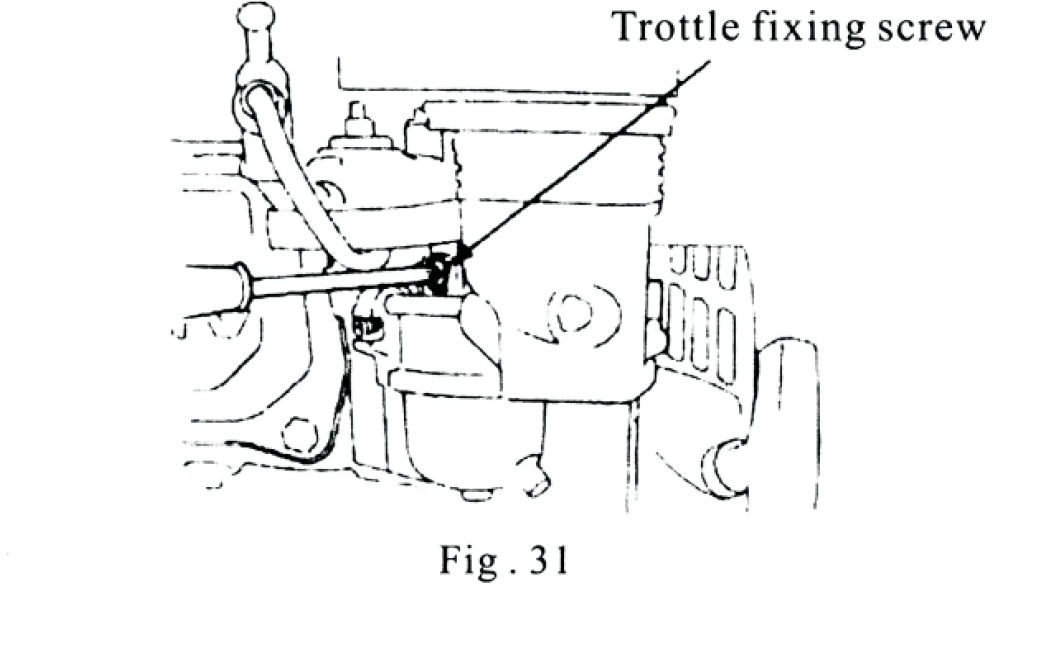

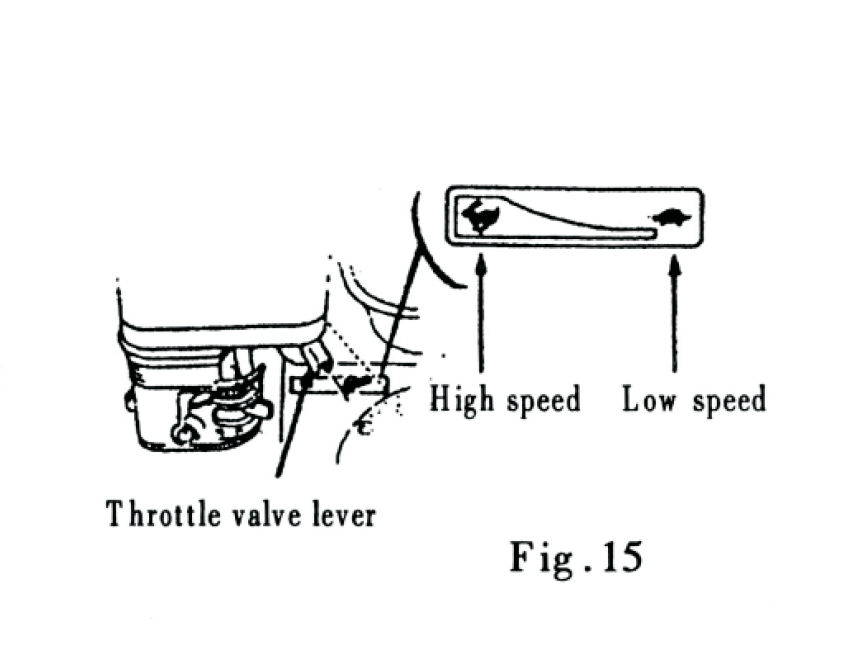

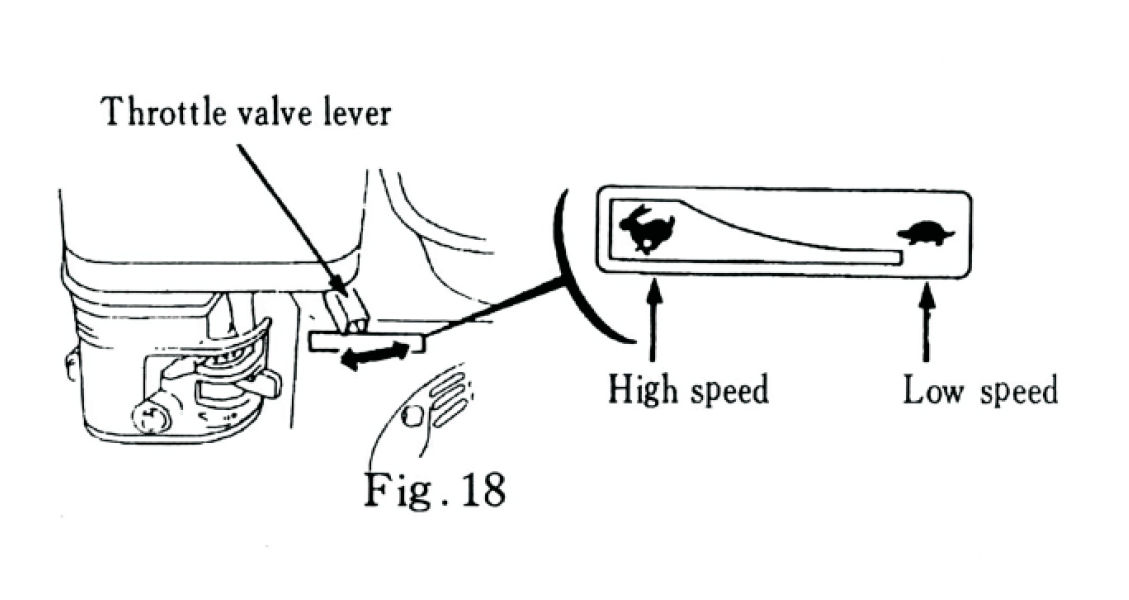

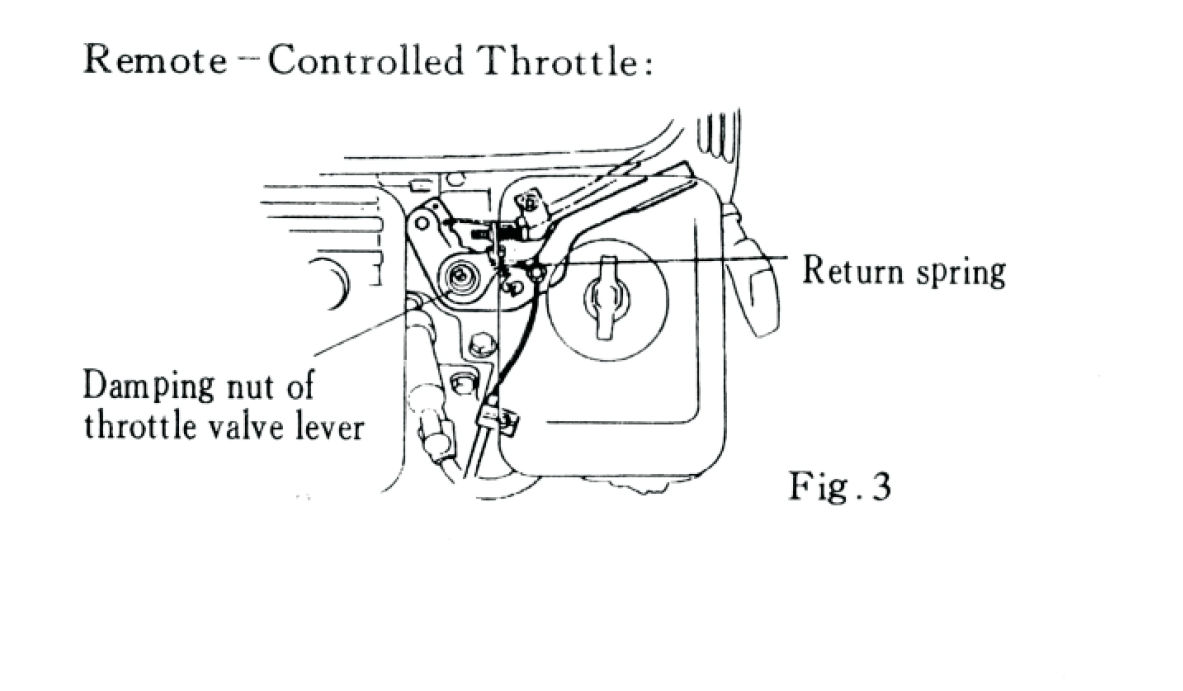

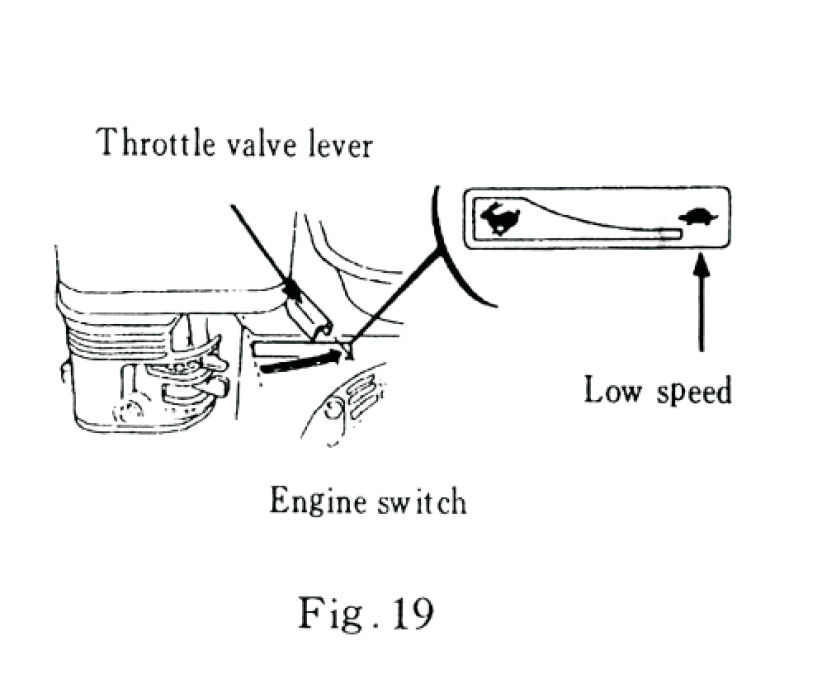

throttle valve lever using the steel wire fixer and 4 mm screw.\n

If using a flexible wire, install the return spring to assist the throttle in returning to idle.

\n

If the throttle movement feels tight, loosen the damping nut on the throttle valve lever slightly.

\n\n

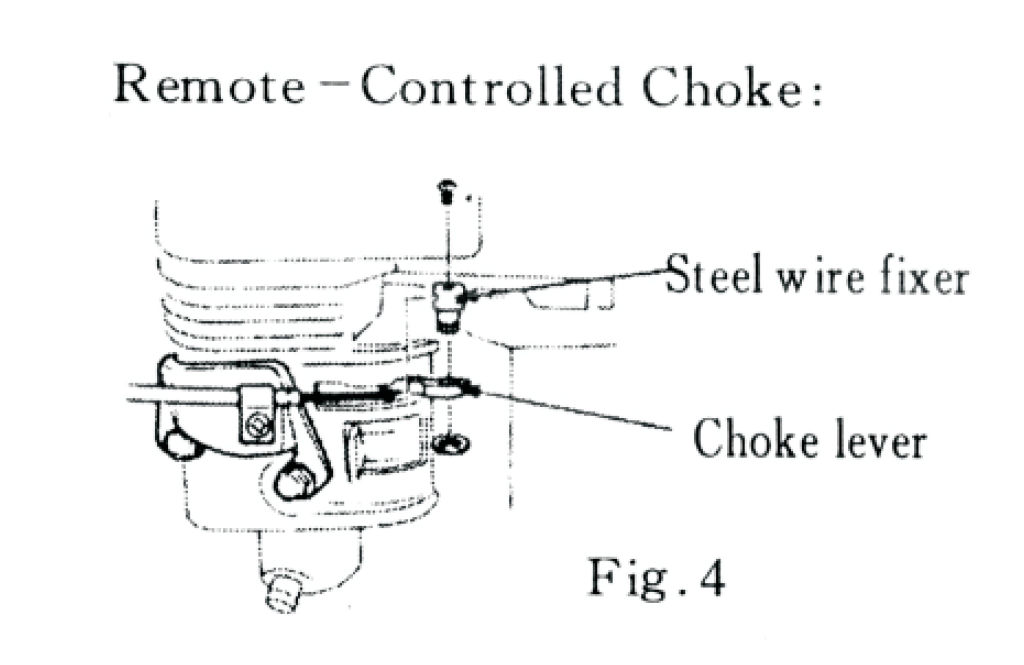

Remote-Controlled Choke Installation (Figure 4):

\n

Attach the steel wire to the choke lever using the steel wire fixer and 4 mm screw.
Ensure the wire moves freely and can fully open and close the choke valve.

\n","updatedAt":1760609655453}33:T4a3,{"lang":"en","value":"

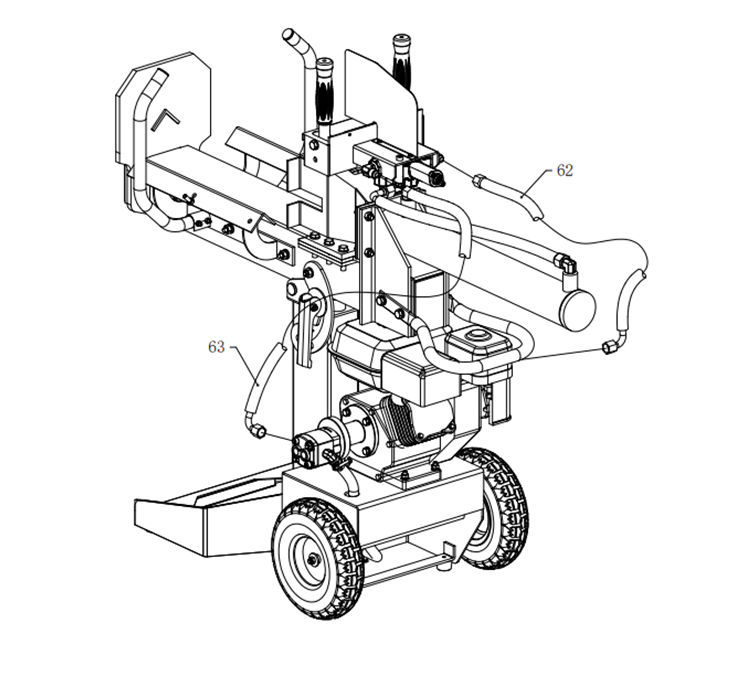

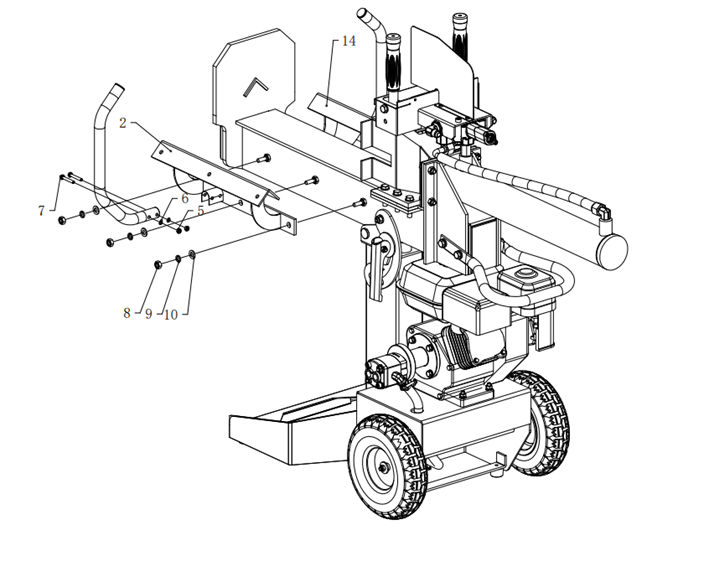

1) Load the log securely onto the beam and position it firmly against the wedge before operating.

\n

2) Serious accidents can happen when other people are allowed inside the work zone. Keep the work zone clear of all other persons while operating the control valve to prevent serious injury.

\n

3) Use both hands to push the control valve handle forward to initiate the log splitting action.

\n

4) Use both hands to pull the control valve handle backward to return the wedge to its original position.

\n

5) Never place any part of your body near the wedge or beam slide during operation; the wedge poses a severe crush hazard and can cut through skin or break bones.

\n

6) Remove all split wood and debris from the work zone immediately after each operation to maintain a safe workspace.

\n

7) Do not wear loose clothing during operation, as it may become entangled in moving parts.

\n

8) Operate the log splitter only during daylight hours or in a well-lit environment to ensure clear visibility and safe operation.

\n","updatedAt":1759934041819,"hidden":null}34:T435,{"lang":"en","value":"

Always place the log splitter in maintenance mode before performing any servicing b
