3m Cantilever Parasol V2

Product Information

Create comfortable shade in your garden with this Jardi 3m Banana Hanging Parasol. Designed with a strong steel frame and durable steel ribs, this cantilever umbrella provides wide shade while keeping the pole out of the way of your seating area. The easy to use crank handle allows smooth opening and closing, while the 3m polyester canopy offers excellent sun protection. It also includes a cross base for stability and a black Oxford umbrella cover with a zipper to help protect the parasol when not in use.

SKU	216430-216431, 216433-216435
Height	2.4m
Width	2.8m
Net Weight	12.5kg
Gross Weight	13.9kg
Materials	Steel, Polyester
Extras	Waterproof Rain Cover with Zipper

3m Cantilever Parasol V2

Safety Information

Safety Advice

Ensure you have read and fully understood the instruction manual and safety advice before using this product.
Always assemble and install the parasol on a flat, stable surface to ensure maximum stability during use.
Only use the parasol with the full base provided; if additional weight or anchoring is necessary, use compatible parasol base weights as instructed to prevent tipping.

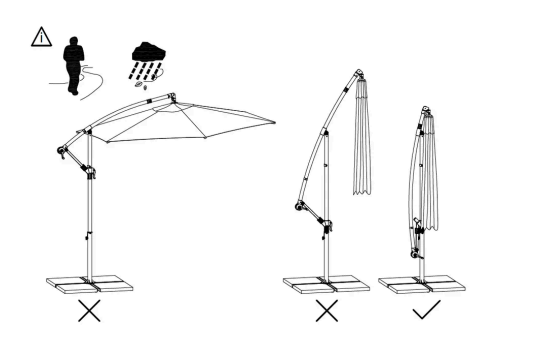

Never use the parasol in windy, gusty, or stormy conditions; wind can cause tipping or collapse that may lead to injury or property damage.
Always close and secure the parasol when not in use or when left unattended to prevent wind-related accidents.
Never attempt to use the parasol without fully securing all locking mechanisms, joints, and fasteners as instructed.
Regularly inspect the parasol structure, joints, and locking mechanisms for signs of wear, loosening, or damage; do not use if faults are found.
Do not modify, hang objects from, or attach accessories to the parasol frame, canopy, or support arms, as this may compromise its structural integrity.
Always use the designated handles and controls to adjust the parasol’s height, tilt, or rotation; do not force or overextend moving parts.
Keep hands, fingers, and clothing clear of moving parts, crank handles, and tilt joints to avoid pinching or entrapment injuries.
Operate the crank and adjustment mechanisms slowly and with full attention; never allow children to operate any adjustment features.
Ensure the parasol is fully stable and the base is weighted before making any adjustments to tilt or rotation.
Place the parasol in a location that avoids high foot traffic, entrances, or exits; be especially cautious of the extended support arms which may present a trip hazard.
Take care when walking around the parasol to avoid contact with protruding arms, the base, or tilt joints.
Keep all moving parts clean and free of debris; lubricate hinges or joints only as specified in the manual.
Store the parasol in a dry, sheltered location or under a weatherproof cover during adverse
weather or prolonged periods of non-use.
Keep the parasol away from open flames, patio heaters, or other heat sources to prevent fire hazards or material degradation.
Do not climb, lean on, or apply excessive force to any part of the parasol or its base, as this may cause structural failure.
Do not exceed any specified limits or guidance on safe use provided in the instruction manual.
Dispose of any damaged or worn components safely and do not attempt unauthorised repairs; contact the manufacturer for approved replacement parts or servicing.

GPSR Information

UK GPSR Information

Manufacturer Monster Group UK Limited
Monster House 19-23 Alan Farnaby Way
Industrial Estate Sheriff Hutton
York YO60 6PG
England
+441347878880

Representative Rana Harvey
Monster House 19-23 Alan Farnaby Way
Industrial Estate Sheriff Hutton
York YO60 6PG
England
+441347878880

EU GPSR Information

Manufacturer Monster Group BV
Van Heemskerckweg 28A & B
-
Venlo 5928LL
Netherlands
+441347878880

Representative Rana Harvey
Van Heemskerckweg 28A & B
-
Venlo 5928LL
Netherlands
+441347878880

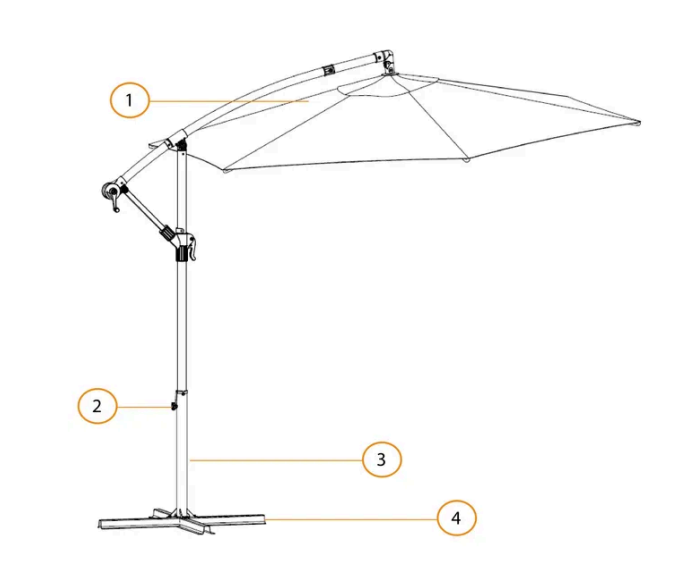

Included Parts

1x Part A - Steel Ribs and Canopy

1x Part B - Cross-Base Frame

1x Part C- Cross-Base Frame

1x Part D - Stand

1x Part E - Knob

4x Part F - Bolts

4x Part G - Washers

1x Part H - Wrench

1x Part I - Waterproof Rain Cover

Monster Manual

Assembly

1. Assembling the Cross-Base Frame

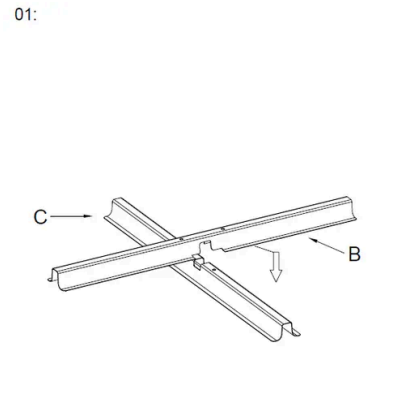

Insert Part B into Part C to form the cross-base frame
Ensure the components are aligned and securely connected

2. Centre and Secure Component

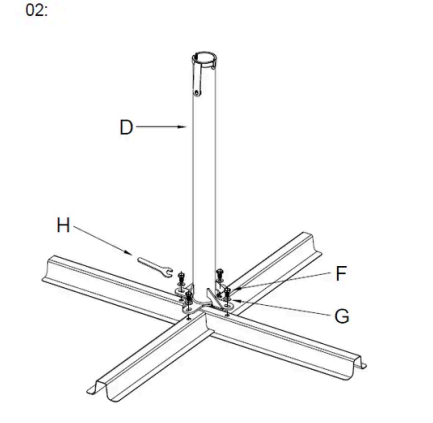

Insert the stand (Part D) into the centre of the cross-base frame formed by Parts B and C
Secure Part D using the bolts (Part F) and the washers (Part G)
Tighten the bolts with the wrench (Part H) to ensure stability

3. Component Insertion and Locking

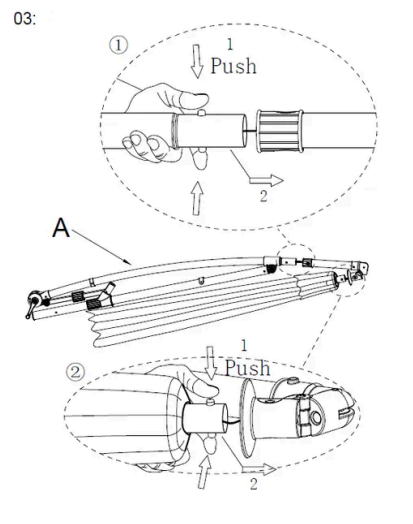

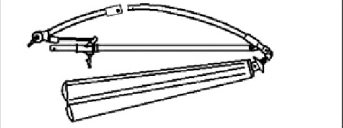

Insert the steel ribs and canopy (Part A) into the assembled structure by aligning it with the designated slot
Push Part A into place until it clicks securely
Ensure both ends are properly inserted and locked by pressing the push buttons as shown

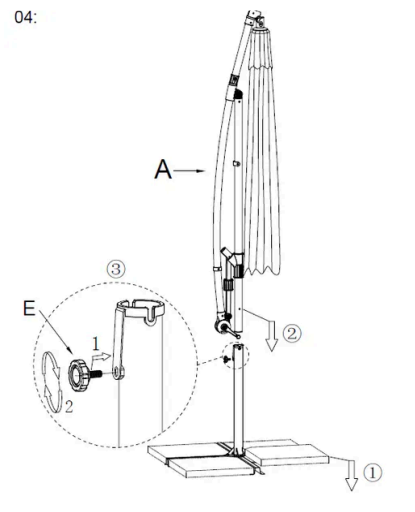

4. Component Insertion and Fastening

Slot the steel ribs and canopy (Part A) into the stand (Part D), then insert the knob (Part E) into the designated hole on Part D
Ensure it is aligned correctly and secure by tightening the knob

User Manual

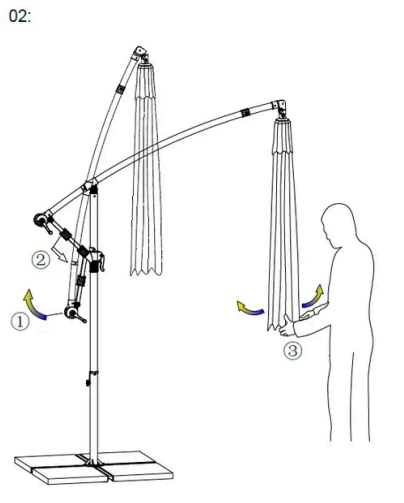

1. Canopy Height Adjustment and Locking

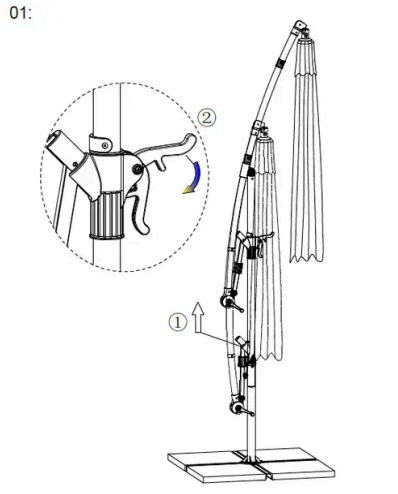

Lift the parasol canopy by using the handle to raise it to the desired height. Once positioned, secure the height by pulling the locking lever down to lock it in place
Ensure the mechanism is fully engaged to prevent movement

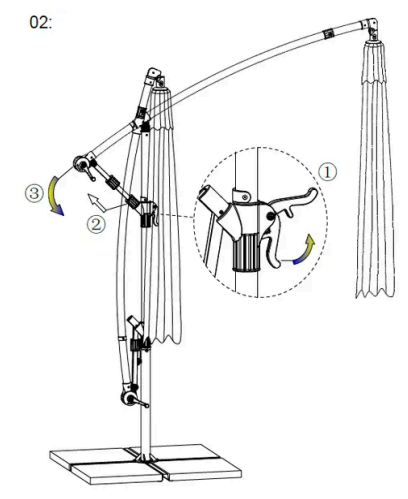

2. Canopy Opening and Positioning

Rotate the crank handle (1) to open the parasol canopy
Adjust the tilt angle by using the tilt mechanism (2) to position the canopy as desired
Finally, ensure the canopy is fully extended and secure by gently pulling the fabric (3) to confirm it is properly aligned and tensioned

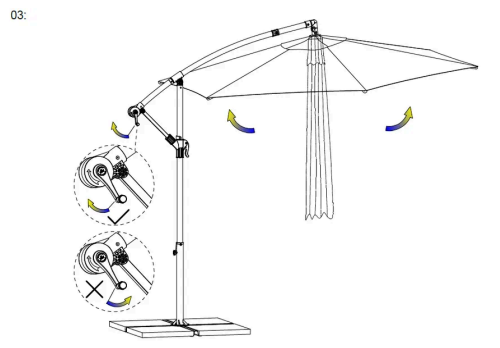

3. Canopy Extension and Alignment

Rotate the crank handle clockwise to fully open the parasol canopy
Ensure the handle is turned until the canopy is completely extended and secure
Adjust the tilt angle by using the tilt mechanism to achieve the desired position
Confirm that the canopy is properly aligned and tensioned by gently pulling the fabric

Storage

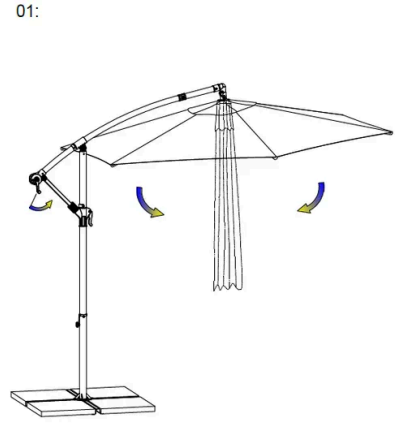

1. Canopy Position Adjustment

Rotate the crank handle anti-clockwise to close the canopy
Adjust the tilt angle by using the tilt mechanism to achieve the desired position
Confirm that the canopy is properly aligned and tensioned by gently pulling the fabric

2. Canopy Angle Adjustment

Use the handle (1) to rotate the parasol arm to the desired position
Adjust the angle by loosening the joint (2) and moving the arm (3) to achieve the preferred tilt
Ensure all adjustments are secure by tightening the joint and confirming stability

3. Canopy Closure

Close the parasol canopy by rotating the crank handle counter clockwise until the canopy is fully collapsed
Ensure the parasol is in the upright position and secure all locking mechanisms
Store the parasol in a dry, sheltered location to protect it from adverse weather conditions

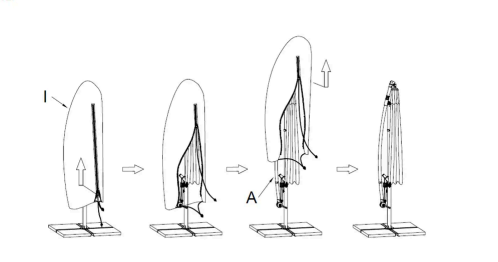

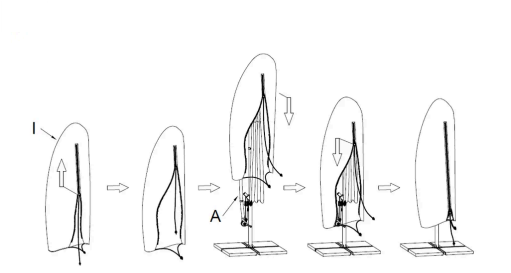

4. Rain Cover Installation

Slide the waterproof rain cover (Part I) over the collapsed parasol canopy, ensuring it is fully covered
Secure the cover by pulling it down and fastening it at the base
Ensure the steel ribs and canopy (Part A) is stable and the cover is properly aligned to protect the parasol from weather elements

5. Rain Cover Removal

Begin by unfastening and sliding the rain cover (Part I) upwards to remove it from the parasol
Ensure the steel ribs and canopy (Part Q) is stable during this process
Once the cover is fully removed, the parasol is ready for further adjustments or use.

Maintenance

General Care

Clean canopy regularly using warm water, mild soap, and a soft brush
Allow canopy to fully dry before closing or storage

Frame and Structure

Inspect frame for: loose joints or signs of wear or corrosion
Ensure all locking mechanisms are secure before use

Tilt, Rotation, and Crank Mechanisms

Operate using designated handles only
Check moving parts for smooth operation
Lightly lubricate joints if stiffness occurs
Keep hands clear to prevent entrapment

Stability and Positioning

Always use on a level surface
Check base weight and stability regularly
Close parasol when not in use or during wind

Placement Awareness

Ensure parasol is positioned in a low-traffic area
Be aware of extended arms and base footprint to avoid trips

Troubleshooting

Please read through the guide below if you have any issues or faults with your device. The information covers and resolves the majority of frequently asked questions.

Q: There are parts missing from my order.

A: If there appears to be any part missing from your package contact our Customer Support team via the details on the Contact Us page within 7 days of receipt.

For all other issues please contact our Customer Support department via the details on the Contact page.
