50L Industrial Vacuum

This guide provides step-by-step instructions for assembling, operating, and maintaining your MAXBLAST 50L Industrial Vacuum.

Product Information

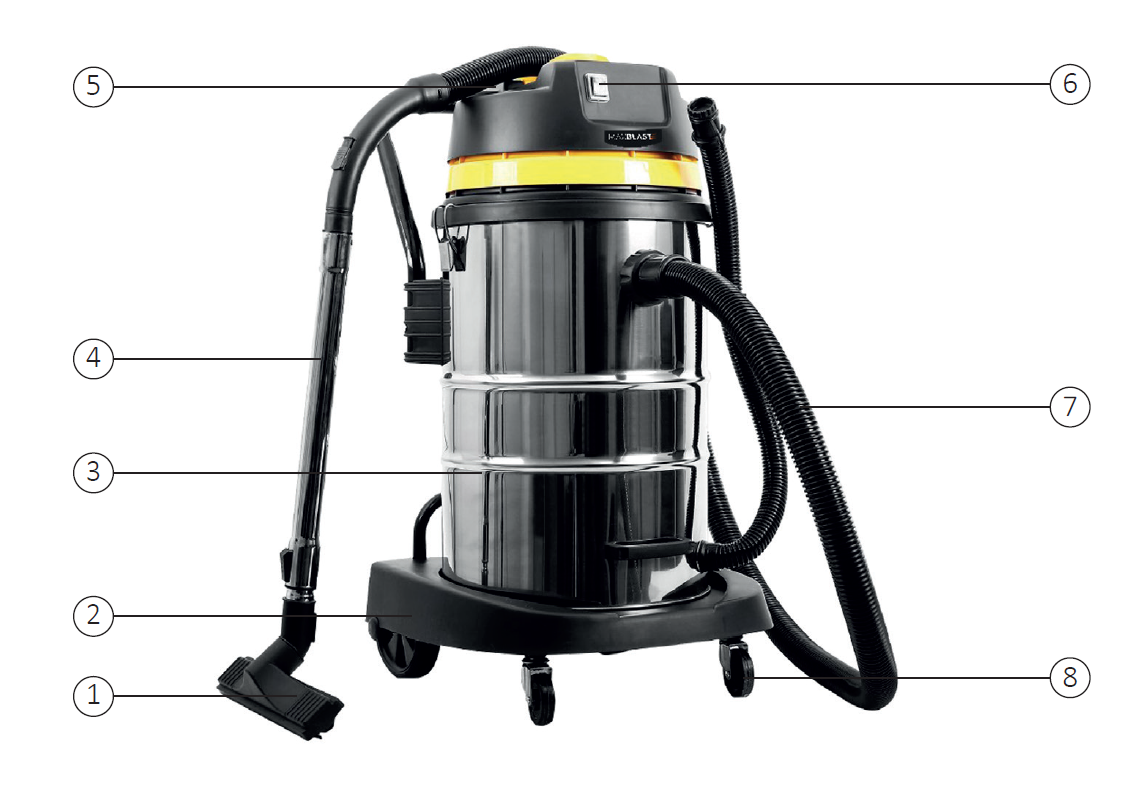

50L Industrial Vacuum

The MAXBLAST 50L Industrial Vacuum is built for demanding cleaning tasks in warehouses, workshops, and commercial spaces. Powered by a 1400W motor, it efficiently handles both wet and dry materials. It comes with four attachments, including two floor brushes, a bristle nozzle, and a crevice tool, making it suitable for a wide range of surfaces. The dual filtration system ensures reliable performance and cleaner air output. A durable stainless steel drum, 50-litre capacity, and smooth castor wheels make it easy to use, empty, and manoeuvre—ideal for keeping large areas clean with minimal effort.

Dimensions: 50.5 x 45 x 86.5 cm
Weight: 15Kg
Capacity: 50 L
SKU: 10680

Technical Information
Voltage	230 / 50 Hz
Power	1400 W
Amperage	10 A
Air Flow	45 L/S
Noise Level	80 dB
Filter	Cloth and HEPA Filter

Safety Advice

Please read through the safe working practice to ensure prevention of injury or
damage to the device.

Do not use the machine if the power cord is frayed or damaged.
When the device is not in use ensure that the power plug is removed from the

socket. This will prevent damage to the appliance through power surges.

This appliance can be dangerous if the power cord or wires come into contact with

water.

Clean this product after use and unplug the appliance from the wall whilst cleaning.
Do not overwork the machine.
If damaged, do not operate the machine.
Do not pour water on the electrical housing or near the vents.
Appropriate clothing must be worn whilst operating this machine.
Keep clean to prolong the life.

Do not jam the air inlet mouth.

Do not operate near combustible and explosive areas/items.

Do not vacuum combustible, explosive or sharp items.
Do not turn the machine upside down.
When repairing, remove plug from power supply.
Keep away from bright sunlight and high temperatures.
To clean, do not pour water on it. Wipe down and dry with a cloth.

Resolution Guide

Please read through the guide below if you have any issues or faults with
your device. The information covers and resolves the majority of frequently
asked questions.

Q: The vacuum has lost suction.

A: Ensure the vacuum is empty, the filter is clean and there are no blockages
in the hose/attachment.

Q: There are parts missing from my order.
A: If there appears to be any part missing from your package contact our
Customer Support team within 7 days of receipt.

Q: My industrial vacuum will not start.

A: Check the plug is attached to a power supply and the drum is empty.
Check the fuse in the plug. When checking the fuse, ensure the vacuum
is switched off at the mains. If it still will not start, simply call or email our
Support Team. They will guide you through issues or arrange a date and
time for us to collect the product and fix it with our 12 month guarantee.

Q: My hose attachment isn’t working properly.

A: This is most likely a broken belt. To replace, unscrew the cover plate
behind your vacuum’s brush and see the condition of the belt. If it looks
damaged, just place one end into the drive shaft and the other on the
brush’s grooves. Place back the brush and turn it a few times to check if you
have replaced it properly.

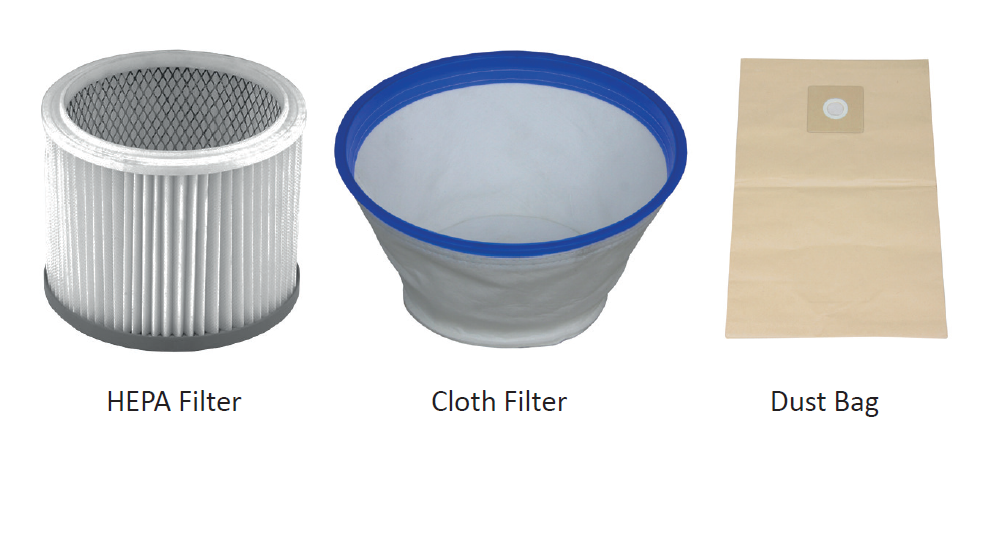

Parts

HEPA Filter

Dust Bag

Cloth Filter

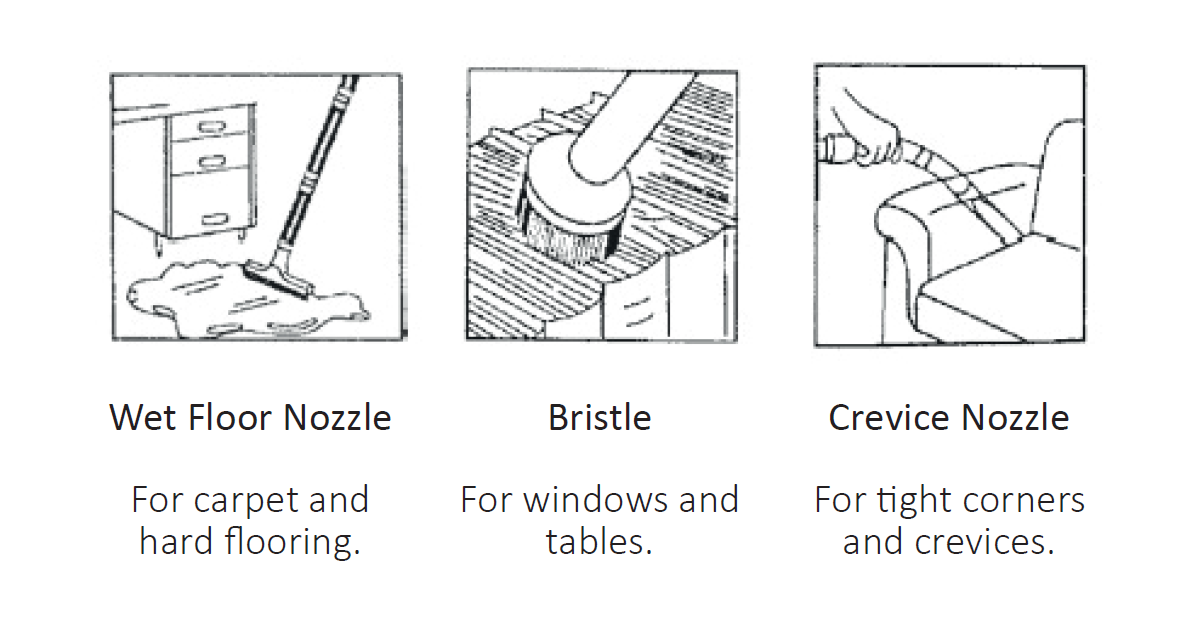

Wet Floor Attachment

Bristle Attachment

Crevice Nozzle Attachment

Dry Floor Attachment

1. Step One

Insert the hose connector into the air inlet mouth. Make sure the connector is securely fastened.

2. Step Two

Check the dual filter is in place for dry vacuuming. If you are wet vacuuming, remove everything from the drum. Place the power cord right at the back of the drum when in use. If you wish, before dry vacuuming, you can add the dust bag.

3. Step Three

Attach desired vacuum nozzle.

4. Step Four

Switch on at mains, and press ‘On’ button to power up.

5. Drum Cleaning

If you have noticed the suction has decreased, the drum is full.

To empty:

1\. First you need to switch off at the power supply.

2\. Unfasten the locking knob and lift off the top cover.

3\. Take off the filter bag and clean the dust away from the drum.

4\. When empty, replace the clean filter bag and lock the top cover back into place.

6. Dual Filter Cleaning

The Cloth Filter and HEPA Filter should be washed with warm water. If required, you can use a soft cloth to wipe.

Remove the filter before cleaning and allow to dry before re-installing.

Note: The Dust Bag should not be washed, please ensure you are washing the Dual Filter, not the Dust Bag.
