Master every BBQ with this XL BBQ Smoker! Enjoy an extra-large grill area, adjustable coal tray, side shelves, storage hooks, a bottle opener, and a warming rack. Easy to clean and move, with a rain cover included—perfect for unforgettable garden parties!

Product Information

BBQ Smoker Grill XL

This Jardi BBQ Smoker Grill is an ideal addition to any garden - whether you're an occasional BBQ enthusiast or a real grilling master - this is the ultimate tool to add to your cooking entourage. With the 4 height adjustable coal tray, you can be rest assured that you'll be able to satisfy anyone's taste buds.
View product (opens in new tab)
SKU
29203
Materials
Rolled Steel
Dimensions
112cm (H) x 124cm (W) x 46cm (D)
Weight
26.5KG

Safe Working Practice

Please read through the Safe Working Practice to ensure prevention of injury or damage to the device.

  • Ensure you have read and fully understood the instruction manual and safety advice before assembling this product.
  • Ensure that the grill is handled and assembled according to these instructions.
  • Do not use this product for anything other than its intended purposes.

Tools

Wire Brush

Parts

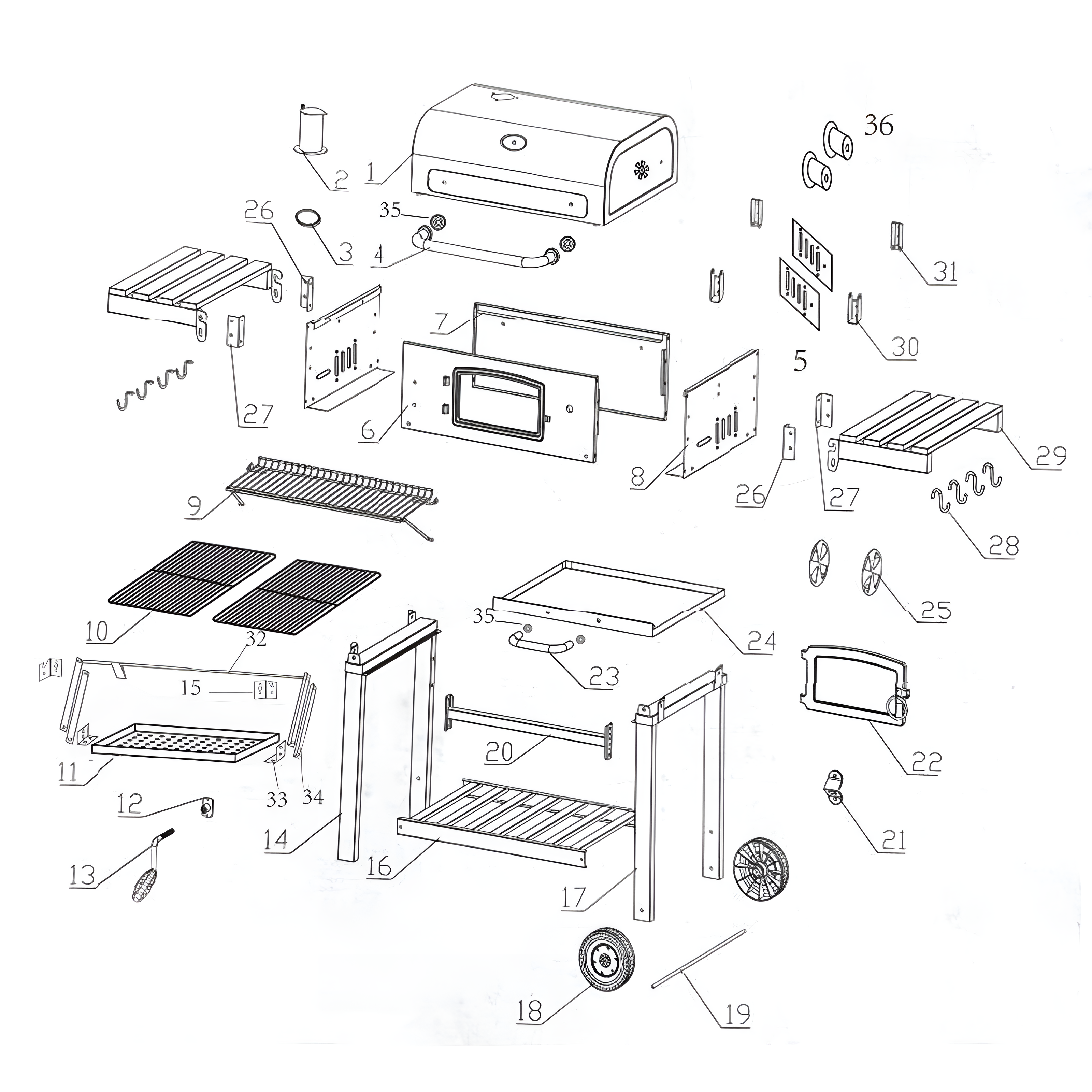

Parts List
1Grill Lid
2Chimney
3Thermometer
4Grill Lid Handle
5Air Vents
6Front Panel
7Back Panel
8Side Panel
9Warming Rack
10Cooking Grill
11Charcoal Tray
12Threaded Mount
13Crank Handle
14Left Leg Assembly
15Lifting Rod Connector
16Cart Base Shelf
17Right Leg Assembly
18Wheel
19Axle
20Rear Cart Brace
21Bottle Opener
22Charcoal Access Door
23Ash Tray Handle
24Ash Tray
25Lid Vents
26Side Table Front Bracket
27Side Table Rear Bracket
28Hook
29Side Table
30Lower Lid Hinge
31Upper Lid Hinge
32Lifting Strut
33Lifting Rod Connector
34Lifting Rod
35Handle Base
36Vent Sliding Knob
37M6 X 15MM
38M6 X 35MM
39M5 X 8 MM
40M5 X 15MM
41M6
42M5
43Hinge Bolt
44R Pin
45M6 Medium
46Lid Pin
47M4 X 15MM

1. Grill Placement Safety

  • Always use the grill outdoors.
  • NEVER use the grill in an enclosed space or under a covered area. Charcoal creates carbon monoxide and therefore should always be burned in a well-ventilated area.
  • DO NOT use this grill within 10'(3m) of any combustible material, including, but not limited to shrubbery, trees, wood or treated wood decks, fences, patios, porches, walls, vehicles, gasoline, lighter fluid, or any other flammable liquid.
  • ONLY use this grill on a hard, level, non-combustible, stable surface, such as concrete that can support the weight of the grill. NEVER use on wood or other combustible surfaces.
  • NEVER use this grill where children or pets could come into contact with the grill.

2. Grill Preparation Safety

  • We recommend using charcoal as this will not exceed the maximum combustible temperature for the grill. We recommend only using wood chips for flavouring; please be aware that it can be difficult to control the temperature and damage may occur to the grill.
  • We recommend that you use 2-4kg of charcoal at a time as this will help to ensure you can control the temperature.
  • The optimal grilling time is 4 - 6 hours.
  • Do NOT use the grill without the ash tray in place.
  • Do NOT use this grill unless fully assembled and all parts are in working order.

3. Charcoal Lighting Safety

  • We recommend using charcoal as this will not exceed the maximum combustible temperature for the grill. We recommend only using wood chips for flavouring; please be aware that it can be difficult to control the temperature and damage may occur to the grill.
  • If you use charcoal starter fluid, ONLY use starter fluid approved for lighting charcoal.
  • NEVER use gasoline, alcohol, kerosene, or any other highly flammable liquid. Use of any of these or similar products could cause an explosion, possibly leading to severe bodily injury.
  • ALWAYS clean up any starter fluid spills before lighting charcoal.
  • ALWAYS allow charcoal starter fluid to completely burn off prior to closing the grill lid. Failure to do so could trap fumes in the grill and might result in flash fire or explosion when the lid is opened.
  • NEVER add charcoal starter fluid to hot or warm coals. Flare-ups could occur and cause burns.
  • ALWAYS store charcoal starter fluid safely away from grill. DO NOT store starter fluid or other flammable liquids or materials under the grill.

4. Grill Use Safety

  • DO NOT use the grill in windy conditions.
  • NEVER leave a hot grill unattended.
  • Grill is hot when in use. To avoid burns:

1. DO NOT attempt to move the grill while lit or still hot.
2. ALWAYS wear protective gloves or oven mitts.
3. DO NOT TOUCH any hot grill surfaces.

  • DO NOT wear loose clothing or allow hair to come into contact with grill.
  • NEVER add pre-soaked charcoal to hot or warm coals or ashes. Dangerous or explosive flare-ups could occur and result in bodily harm.
  • USE EXTREME CAUTION when adding charcoal and/or wood to the grill while cooking, as charcoal is still hot and can cause burns.
  • ALWAYS open lid completely and secure to prevent unexpected closing.
  • NEVER place more than 8 lb (3.6kg) on any of the shelves. DO NOT lean on any shelf.
  • NEVER add water when smoking as hot water may splash onto the coals creating a burst of steam and hot ash.
  • When grilling, grease from food may drip onto the charcoal and cause a grease fire. If this happens close the lid and air vents to suffocate the flame. NEVER use water to extinguish a grease fire.
  • Keep hands, face, and body a safe distance from the grill when opening the lid. Flare-ups may occur when flames or hot coals encounter increased airflow.
  • NEVER try to remove the ash tray while coals are hot. Doing so could cause burns.

5. After Use Safety

  • ALWAYS allow grill and components to cool completely before handling.
  • Ensure the grill has fully cooled before covering with the cover provided.
  • DO NOT remove ashes or used coals from the grill until they are fully extinguished.
  • To extinguish charcoal, close all vents and close the grill lid for as long as possible. When they must be removed, carefully place in a non-combustible metal container. Saturate coals and ash with water and allow them to remain in the metal container for 24 hours before disposing.
  • Keep extinguished coals and ash safely away from combustible structures and materials.
  • Spray or douse the surfaces under and around the grill with water until completely wet to extinguish any ashes, coals, or embers that may have fallen during grilling or cleaning.
  • Store the grill in a dry location out of reach of children and pets when not in use.

6. Resolution Guide

  • WHAT DO I DO IF THERE ARE MISSING PARTS FROM MY ORDER?

If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.

  • HOW DO I CLEAN MY BBQ SMOKER GRILL?

We recommend that you clean the inside of your grill as soon as it is safe to do so with a combination of hot soapy water and your complimentary wire brush. For the frame, use only a soft cloth and hot soapy water. Make sure to dry it off thoroughly before covering with the cover provided.

  • WHY IS THE GRILL SURFACE PEELING?

The maximum combustible temperature of the grill is 350°C. If this temperature is exceeded than damage may occur to the grill. We recommend the use of charcoal as fuel because charcoal will only burn to a maximum temperature of 300°C.

FOR ALL OTHER ISSUES, PLEASE CONTACT OUR CUSTOMER SUPPORT TEAM.
