Cantilever Parasol Fan Base

Instructions for assembling the Cantilever Parasol Fan Base. It includes safety advice, a parts list and assembly instructions to ensure proper setup of the parasol base for outdoor use.

Product Information

Cantilever Parasol Fan Base

Add both stability and style to your outdoor setup with this Fan Parasol Base, designed to securely support your garden umbrella. Made from a durable combination of plastic, concrete, and steel, it provides reliable weight and strength to keep your parasol steady during everyday use. Featuring an attractive fan-shaped design, this base offers a decorative touch while delivering the practical support needed for patios, gardens, and outdoor seating areas.

SKU: 217419

Product Height:	0.04 M
Product Depth:	0.4 M
Product Width:	0.6 M
Product Net Weight:	28 KG
Product Gross Weight:	30.2 KG
Material:	Resin, Steel

Safety Advice

Ensure you have read and fully understood the instruction manual and safety advice before using this product.
Always place the base on a flat, level, and stable surface to provide maximum support for the cantilever parasol.
The base must be fully assembled, correctly positioned, and completely filled before attaching a parasol or vertical structure.
Fill all fan base segments completely with the recommended material (e.g. water or sand) to achieve required ballast and stability.
Ensure all segments are evenly filled and securely placed to maintain proper weight distribution and prevent tipping or imbalance.
Inspect the base segments regularly for signs of wear, leakage, cracking, or imbalance—do not use if any part appears damaged or compromised.
Avoid using water as a filler in freezing conditions unless antifreeze measures are taken; frozen water can expand and damage the structure.
Never place the base in walkways, building entrances, or other areas with frequent foot traffic to reduce the risk of tripping.
If the base is installed in a shared or public space, visually highlight or clearly mark the base edges to increase awareness of the extended footprint.
Always be aware of the full footprint of the fan-shaped base, especially when the parasol canopy is offset and exerts lateral force.
Use caution when handling, assembling, or repositioning base segments; they are heavy and awkward when filled.
Do not attempt to lift or move the base when segments are filled; empty the contents first or seek assistance.
Use appropriate lifting techniques to reduce the risk of back strain or muscle injury during setup or adjustment.
Wear sturdy, closed-toe footwear when assembling or dismantling the base to protect against injury from dropped components.
Always place base segments on the ground before fitting them into position; do not attempt to align them while suspended or unsupported.
Do not modify, drill, or otherwise alter the shape or construction of the base segments.
Only use the base with compatible cantilever parasols that meet the specifications provided in the instruction manual.
Ensure the total weight and coverage of the parasol is appropriate for the size and load-bearing capacity of the base.
Remove the parasol and store both the parasol and base in a sheltered or indoor location during high winds, storms, or extended periods of non-use.
Never stand, climb on, or use the base as a platform or support for objects other than the intended parasol structure.
Do not drag the base across rough surfaces while filled, as this may cause wear or damage to the underside.
Dispose of damaged or deformed base components safely and never attempt unauthorised repairs; contact the manufacturer for approved replacement parts.

Parts

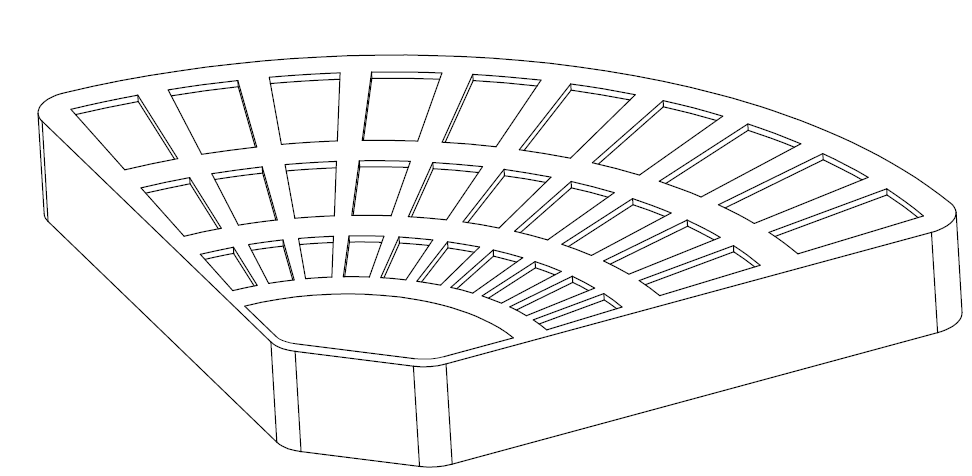

Fan Base

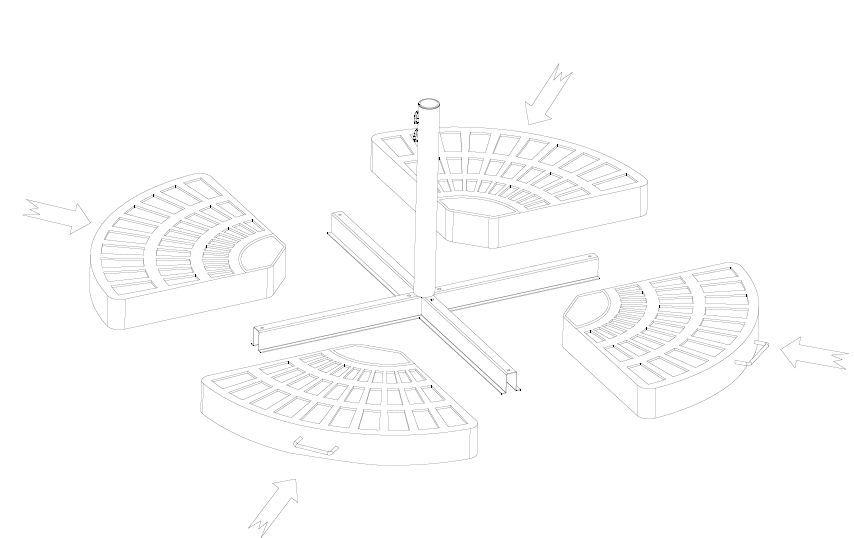

1. Position the Base Weights

Lay all four base weights on the ground around the parasol stand location.

Arrange them so they form a square shape, leaving the centre area open for the parasol cross-base.

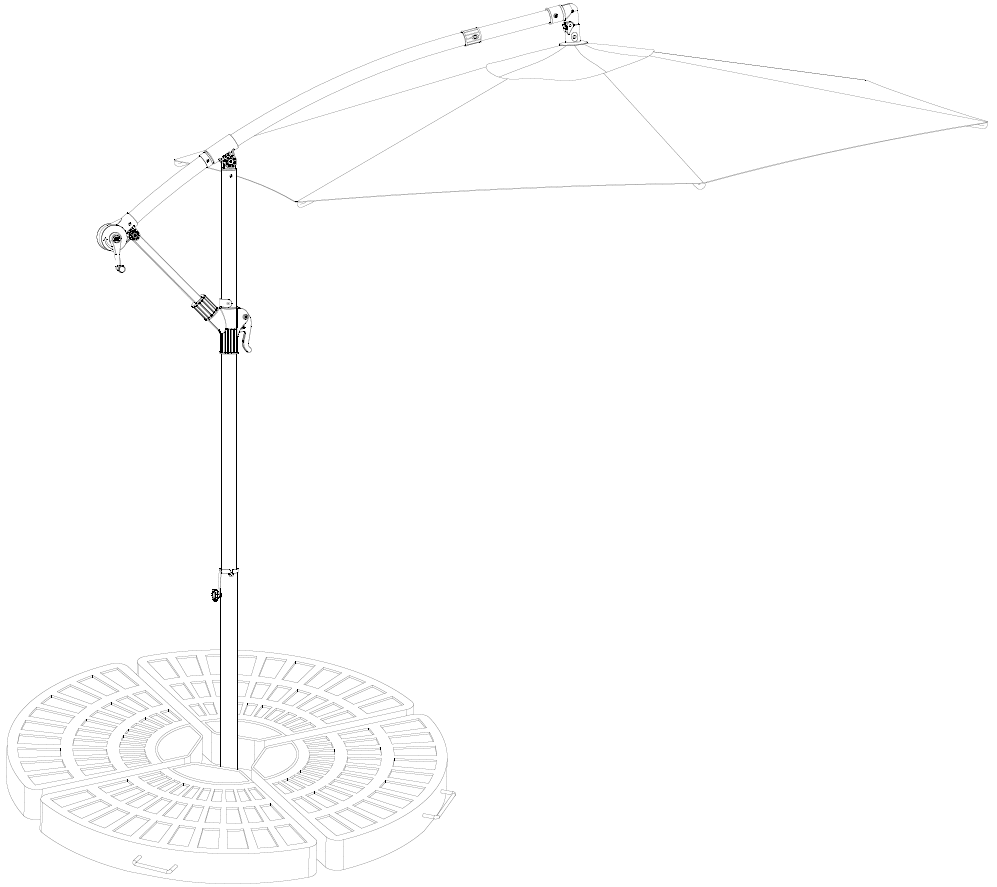

2. Attach the Parasol

Insert the parasol into the cross-base within the centre of the fan bases.

1. Maintenance

Base Condition and Filling

Ensure all segments are:

* Fully filled

* Evenly weighted

Inspect regularly for leaks or imbalance

Stability Checks

Confirm correct positioning and alignment before attaching parasol

Check for movement or shifting over time

Manual Handling

Avoid lifting filled segments

Use assistance when assembling or moving

Follow safe lifting posture

Safety During Assembly

Handle segments carefully

Place at ground level before fitting

Wear closed-toe footwear

Placement

Install in low foot traffic areas

Ensure base edges are visible to reduce trip risk

2.

Please read through the guide below if you have any issues or faults with your device. The information covers and resolves the majority of frequently asked questions.

Q: There are parts missing from my order. A: If there appears to be any part missing from your package contact our Customer Support team via the details on the Contact Us page within 7 days of receipt.

For all other issues please contact our Customer Support department via the details on the Contact page.
