Metal Wheelie Bin Storage - Double

This guide provides step-by-step instructions for assembling components and using your Metal Wheelie Bin Storage - Double.

Product Information

Metal Wheelie Bin Storage - Double

This metal wheelie bin storage unit is designed to securely house two bins, helping maintain a neat and organised outdoor space. It features lockable doors, piston-assisted soft-close lids, and a chain linkage system for convenient bin access. Available in a durable anthracite metal finish or a wood-effect metal finish, it also includes a built-in holder for deodoriser blocks (not included).

SKU: 217808,217812,217881

Specifications:	Attribute:
Dimensions:	1162 x 1342 x 802 MM
Net Weight:	50 KG
Gross Weight:	54.5 KG
Materials:	Galvanised Steel, Epoxy Powder Coating Wooden Pattern
Capacity:	Holds One Standard 240L UK Dustbin

Safety Advice

Ensure you have read and fully understood the instruction manual and safety advice before using this product.
This product is intended solely for the outdoor storage of standard household wheelie bins and must not be used for any other purpose.
This product is designed for use by competent adults and must not be used by children without supervision.
Keep children and pets away during assembly due to heavy components, sharp edges, and small parts.
Assemble the unit strictly in accordance with the instructions provided in the assembly manual, ensuring all components are correctly positioned and securely fastened.
Always assemble the product on a stable, flat surface to prevent parts from slipping or causing injury.
Wear protective gloves during assembly and handling to reduce the risk of cuts from metal edges.
Inspect all panels and components for sharp edges or damage before assembly; do not use if defects are identified.
Use appropriate tools suitable for assembly and ensure all fixings are securely tightened without overtightening.
Keep fingers clear of panel joints and connection points during assembly to avoid pinching.
Handle screws and fixings carefully to avoid puncture wounds; keep small parts out of reach of children.
Due to the size and weight of the product, at least two people are required for lifting, moving, or assembling the unit.
Use safe manual handling techniques: bend knees, keep back straight, and avoid twisting when lifting.
Do not drag the unit across the ground, as this may cause damage or injury.
Install the unit on firm, level ground to ensure stability and prevent tipping.
Secure the unit to the ground using suitable fixings to prevent movement or tipping, particularly in windy conditions.
Do not install on uneven or unstable surfaces.
Never climb, sit, or place excessive weight on top of the unit.
Ensure the lid is supported during installation and final positioning to prevent sudden movement.
The gas pistons are pre-installed and are under pressure; do not tamper with, remove, or attempt to adjust them.
Keep hands, fingers, and loose clothing clear of all moving parts including hinges, doors, and lids to prevent entrapment or injury.
Open and close lids and doors slowly and in a controlled manner; do not force movement.
Be aware that the lid is connected to the bin lid via a chain; ensure correct attachment and that the chain is not tangled or obstructed.
Do not allow children to operate the lids or doors due to risk of trapping fingers.
Ensure bins are correctly positioned inside the unit before use to prevent shifting or falling.
Open doors carefully to avoid contents falling out or causing imbalance.
Do not overload the unit or use it to store items other than standard wheelie bins.
Keep the interior clear of obstructions that may interfere with door or lid operation.
Use the lockable handles responsibly and keep keys out of reach of children.
Do not force locks or handles as this may cause damage or injury.
The deodoriser holder is intended only for solid deodoriser blocks; do not use liquids or chemicals that may leak or react.
Ensure any deodoriser used is handled in accordance with its manufacturer’s instructions.
Regularly inspect the unit for loose fixings, wear, corrosion, or damage, particularly after severe weather.
Do not use the product if any components such as hinges, doors, locks, or pistons are damaged or not functioning correctly.
Metal surfaces may become hot in direct sunlight or cold in low temperatures; take care when handling.
Do not modify the product or use non-approved replacement parts, as this may compromise safety.
Ensure doors and lids are closed and secured during high winds to prevent damage or injury.
Dispose of packaging materials safely, keeping plastic bags and small parts away from children.
At end of life, dispose of the product in accordance with local regulations for metal products.
Take care when dismantling the unit for disposal to avoid injury from sharp edges or heavy parts.\

Parts

1A - Bottom Frame, Left

1B - Bottom Frame Right

2 - Side Panel, Left

3 - Side Panel, Right

4 - Back Panel

5A - Top Cover Panel, Left

5B - Top Cover Panel, Right

6 - Handle

7 - Door

8 - Middle Frame

Part 9 - Deodoriser Block Holder

G24 - Screws

G25 - Screws

G27 - Screws

G26 - Screws

Part G61 - Screws

A13 - Expansion Bolt

A14 - Door Hinge

A15 - Damper

A16 - Feet

A17 - Magnet

A18 - Metal Hook

A20 - Metal Chain

A19 - Handle and Keys

T10 - Wrench

L60 - Screw Caps

Part L22 - Rubber Screw Caps

Part K10 - Screw

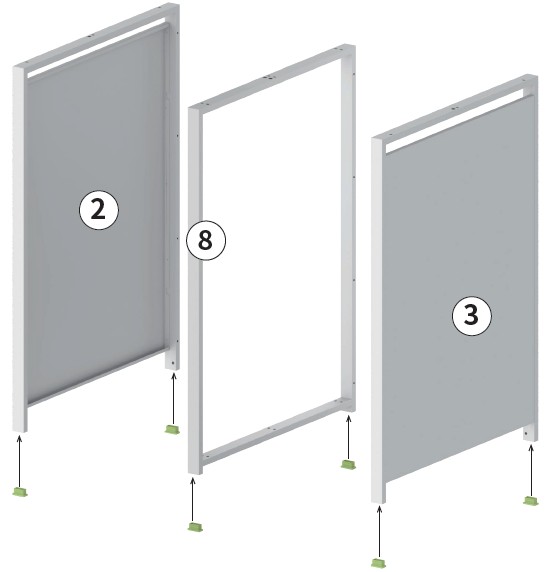

1. Install Feet

Firmly install Feet (Part A16) to the bottom of Side Panel Left (Part 2), Side Panel Right (Part 3) and Middle Frame (Part 8).

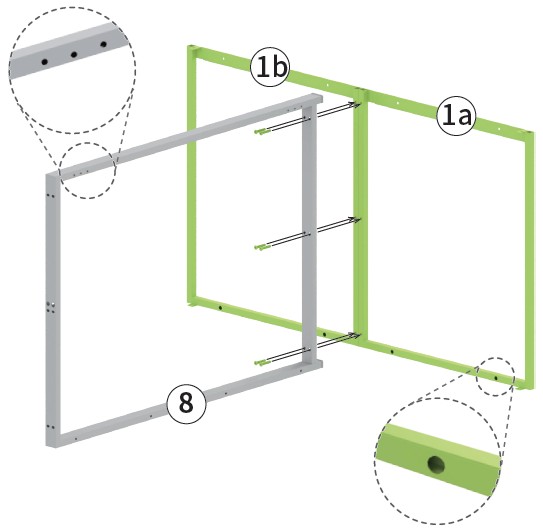

2. Install Bottom Frames

Turn the Middle Frame (Part 8) onto its side. Please see image for correct orientation.

Install Bottom Frames (Part 1a and 1b) to the Middle Frame (Part 8) using Screws (Part G26).

3. Install side Panels

Please see image for correct orientation.

Install Side Panels (Part 2 and 3) to the Bottom Frames (Part 1A and 1B) using Screws (Part G25).

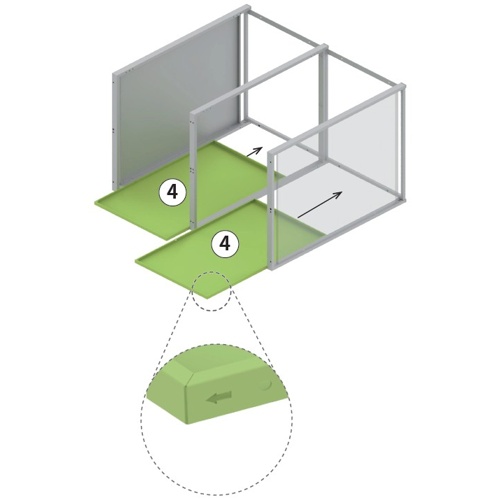

4. Position back Panels

Please ensure the arrows are facing away from the base, refer to image.

Position Back Panels (Part 4).

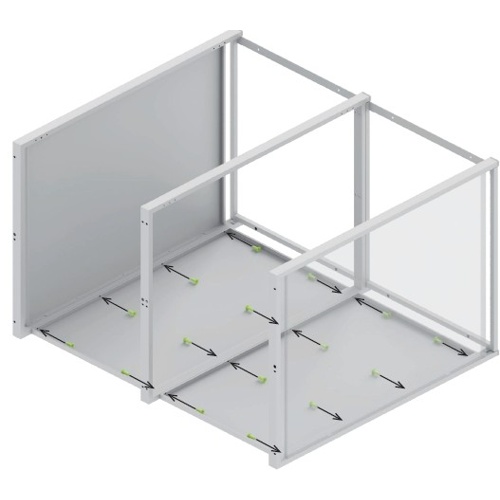

5. Install back Panels

Install Back Panel (Part 4) to Side Panel Left (Part 2), Side Panel Right (Part 3) and Middle Frame (Part 8) using Screws (Part G24).

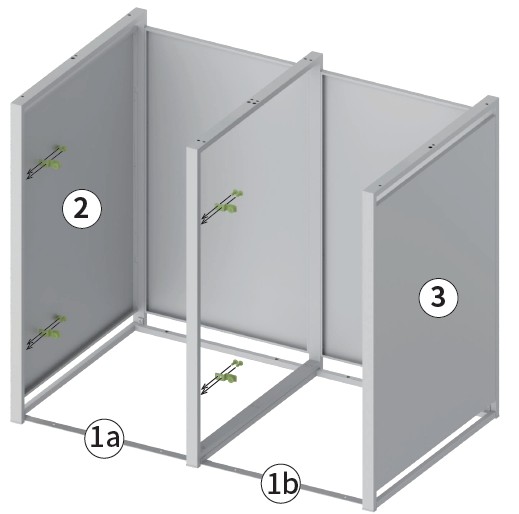

6. Install Door Magnets

Taking care, flip the unit so it is facing upright with the bottom frames firmly on the ground.

Install Door Magnets (Part A17) to Side Panel Left (Part 2) and the Middle Frame (Part 8) using Screws (Part G24).

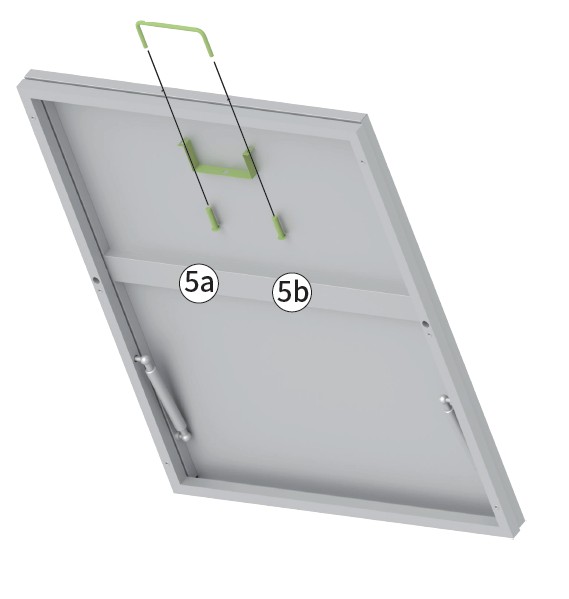

7. Install Handle to the Top Covers

Install the Handles (Part 6) to the Top Cover Panels Left and Right (Part 5a and 5b) using Screws (Part G27).

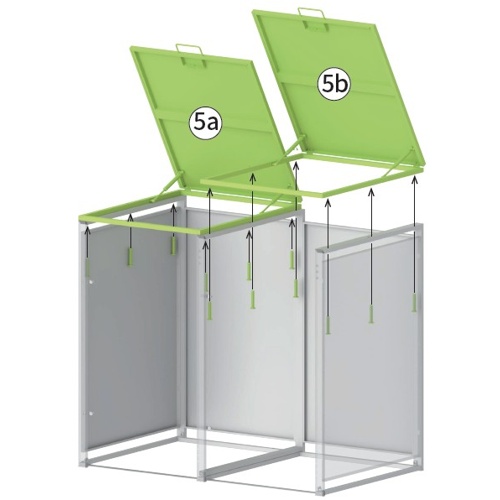

8. Attach the Top Cover Panels to the unit

Attach Top Panels Left and Right (Part 5a & 5b) to the unit using Screws (Part 26).

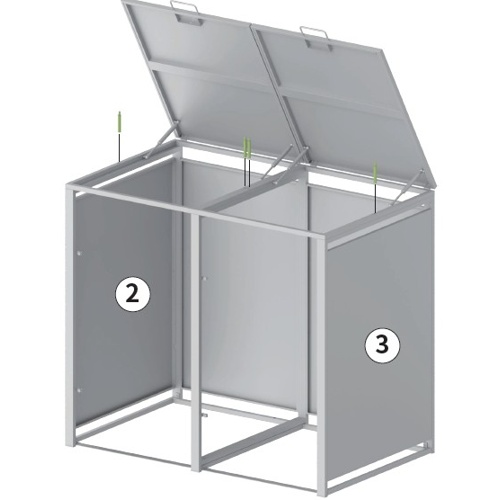

9. Install the Soft Close Dampers

Firmly push the Soft Close Dampers (Part A15) into the hole on the Top Cover Panels (Part 5a and 5b).

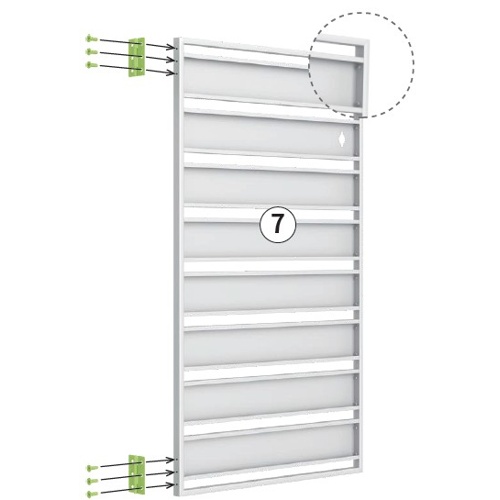

10. Install the Door Hinges

Note: Ensure that the holes of the hinge that are not being used are facing the front of the door panel.

Install the Door Hinge (Part A14) onto the end of the Door (Part 7) using Screws (Part G24).

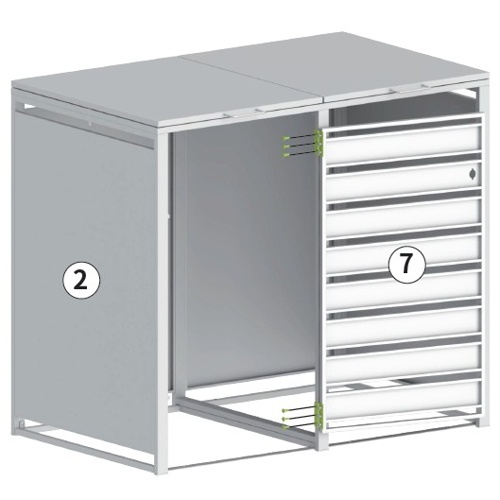

11. Attach the Left Door Panel to the Frame

Note: Ask someone to hold the door panel in place to ensure no injury or damage occurs.

Loosely screw the hinges (Part A14) to the Middle Frame (Part 8) using screw (Part G24).

Once all screws are in place, tighten them completely.

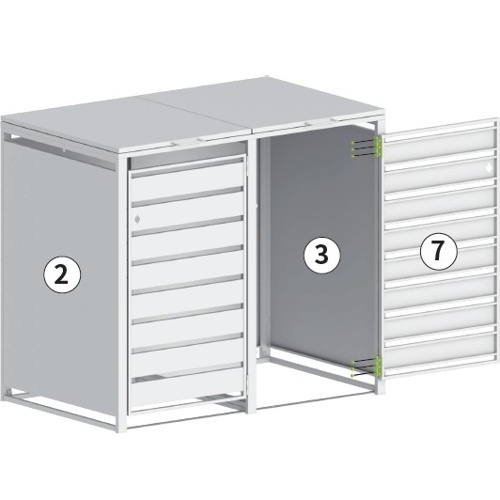

12. Attach the Right Door Panel to the Frame

Note: Ask someone to hold the door panel in place to ensure no injury or damage occurs.

Loosely screw the hinges (Part A14) to the Right Side Panel (Part 3) using screw (Part G24).

Once all screws are in place, tighten them completely.

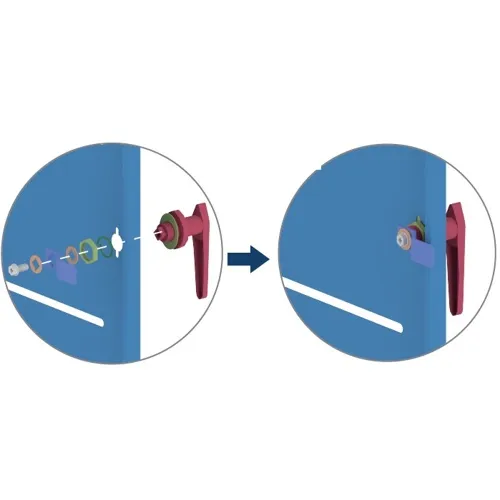

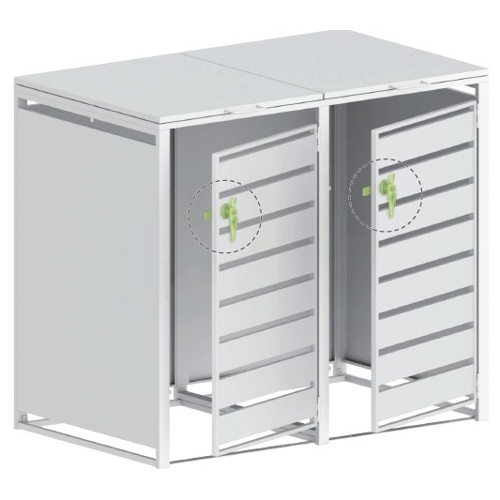

13. Install the Handles

Note: Ensure you follow the diagram to get the internal handle parts in the correct order.

Taking care, fix the Handle (Part A19) to the door.

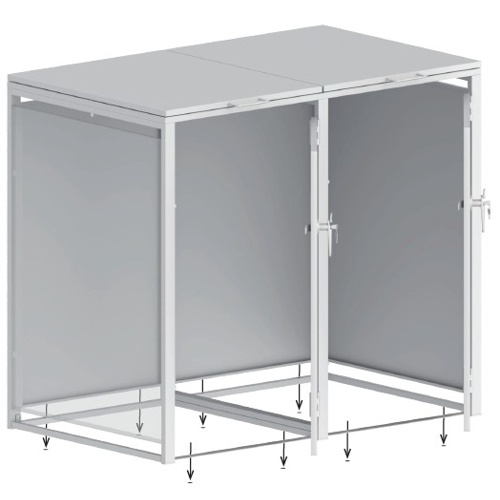

14. Install the Ground Fixings

Note: The unit must be securely fixed to the ground to ensure stability. Failure to do so may result in damage or injury.

Fix the unit to the ground using expansion bolts (Part A13).

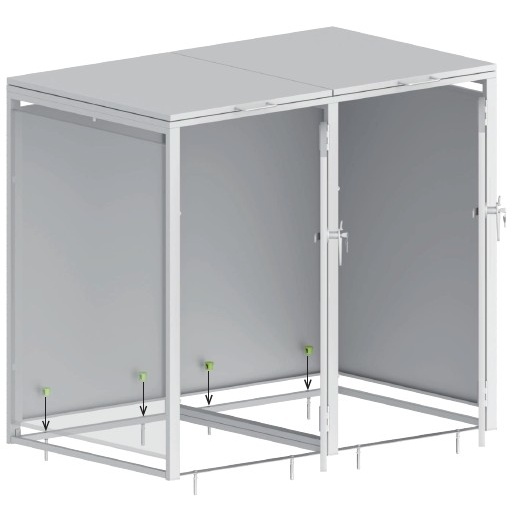

15. Install the Screw Caps

Firmly push the Screw Caps (Part L60) into the holes used for the ground fixings at the back of the unit.

16. Install the Metal Chain and Ring

Loop the Metal Chain (A20) through the handles on the wheelie bin.
Connect the chain to the Top Cover Panels (Part 5a and 5b) using the Metal Rings (Part A18).

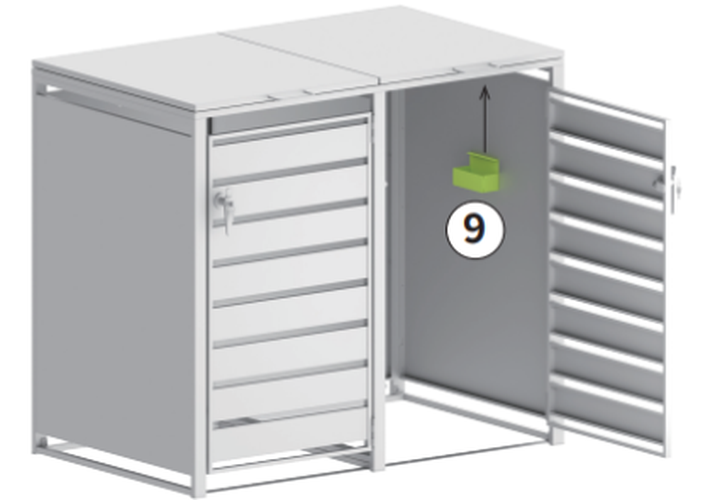

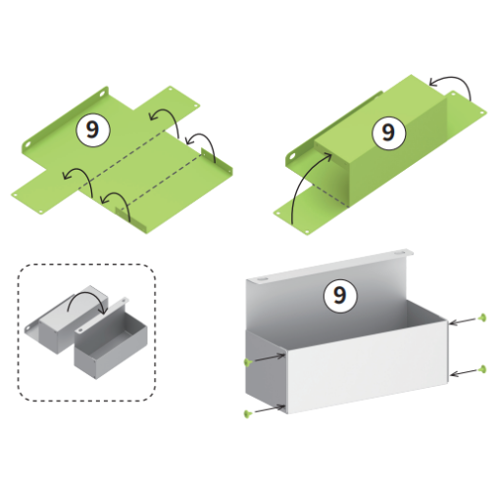

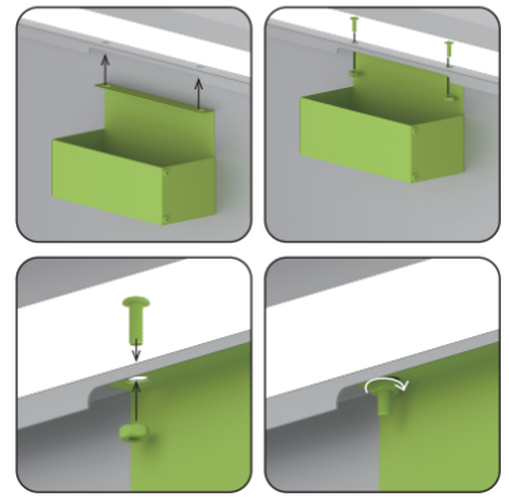

17. Install the Deodoriser Block Holder

Bend each side inward as indicated by the arrows.

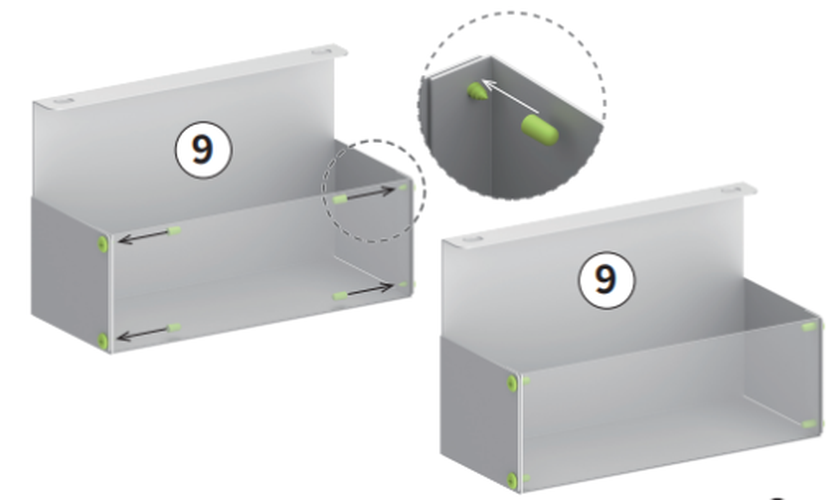

Line up the holes and secure them with the provided screws (Part K10).

Cover the screws with the rubber caps (Part L22) for safety.

Then, attach the deodoriser block holder to the wheelie bin storage using the supplied screws (Part G21).

18. Maintenance

Clean the unit periodically using mild detergent and water to remove dirt and debris.

Inspect and tighten all fixings regularly to maintain structural integrity.

Lubricate hinges and locks periodically to ensure smooth operation.

Check gas pistons periodically for performance and replace if signs of failure occur.

Inspect for signs of corrosion or surface damage and treat promptly to maintain product lifespan.

19. Troubleshooting

Please read through the guide below if you have any issues or faults with your device. The information covers and resolves the majority of frequently asked questions.

Q: There are parts missing from my order. A: If there appears to be any part missing from your package contact our Customer Support team via the details on the Contact Us page within 7 days of receipt.

For all other issues please contact our Customer Support department via the details on the Contact page.
