Portable Horse Shower 18L

Instructions for assembling, installing, and using the Monster Portable Horse Shower 18L, ensuring a comfortable and efficient bathing experience for horses. It includes safety advice, operational guidelines, and maintenance tips.

Product Information

Portable Horse Shower 18L Deluxe

The Monster Portable Horse Shower 18L is an indispensable tool expertly tailored for horse owners! It ensures a comfortable bathing experience, accommodating various sizes. Whether for routine cleaning, post-exercise, or grooming, enjoy consistent water flow and temperature control. Its portability adds convenience, and the 200kg trolley capacity enhances adaptability.

View product

SKU: 212157

Capacity 8 l/min	Capacity 10 l/min
16 kW heat output	20 kW heat output
1 kg/h gas consumption	1.2 kg/h gas consumption

Water heater

Dimensions: 59 cm (H) x 35 cm (W) x 15 cm (D)

Weight: 2 kg

Capacity: 18 L

Water pressure: 0.025 – 0.8 mpa (recommended range)

Temperature: 0°C to 75°C

Battery: 2 pcs D 1.5V batteries (not included)

Safety certification: CE certification

Trolley

Dimensions: 126 cm (H) x 53.5 cm (W) x 54 cm (D)

Trolley tube thickness: 1.1 mm

Wheels: 10” pneumatic tires

Toe plate dimensions: 35 cm (L) x 27.5 cm (W) x 28 cm (D)

Trolley capacity: Max 200 kg

Water pressure: Min. 0.015 mpa / Max. 0.5 mpa

Gas pressure: LPG – 28 mbar

Water connection: G1/2" pipe

Gas connection: 9.5 mm (0.37 in) gas hose

GPSR Information

Manufacturer:

Monster Group UK Limited, Monster House

19-23 Alan Farnaby Way,

Industrial Estate Sheriff Hutton,

York

YO60 6PG

Person Responsible:

Rana Harvey, Monster Group UK Limited,

Monster House

19-23 Alan Farnaby Way,

Industrial Estate Sheriff Hutton,

York

YO60 6PG,

England,

+441347878880

Manufacturer:

Monster Group BV,

Van Heemskerckweg 28A & B,

Venlo 5928LL

Netherlands

+441347878880

Person Responsible:

Rana Harvey,

Monster Group BV,

Van Heemskerckweg 28A & B,

Venlo 5928LL,

Netherlands,

+44134787888

Safe Working Practice

DO NOT use this product for anything other than its intended purposes.
DO NOT leave children or pets unattended near this product.
DO NOT touch the burner viewing window while the burner is on.
Ensure that the water heater and all electrical components always remain dry.
Avoid exposing the product to water, moisture or damp environments to prevent electrical hazards.
Follow proper battery installation guidelines and handle batteries with care.
When adjusting the water temperature and pressure, exercise caution to avoid extremes that may cause discomfort or injury to animals or users.
Test the water temperature before use to ensure it is suitable for the intended application.
Load the trolley within its specified weight capacity of 200kg to prevent structural damage or accidents.
Ensure proper load distribution on the toe plate to maintain stability during transportation.
Follow the provided assembly instructions to securely attach all components, including the water heater, outlet pipe, sprayer, and gas tube.
Regularly inspect all attachments and connections for signs of wear or damage and address any issues promptly.
Check the condition of the trolley's wheels before each use, ensuring they are free from damage or debris that could hinder movement.
Always supervise the use of the Portable Horse Shower, especially when animals are being bathed, to prevent accidents or injuries.
To prevent gas leakage, always close the main gas supply when the heater is not in use.
Do not cover the heater with any material (for example: towels or cloths).
In case of gas leakage, always call a qualified technician.
Check the gas pipe regularly for any damage, as this could cause gas leakage.
It is recommended to replace the rubber gas tube every six months.

Precautions

1. Before using the heater, please read the instructions carefully. Always retain the user manual for future use. It is not only quality but also correct installation which will ensure that your heater works to your satisfaction. The heater must be installed, maintained and checked only by qualified and authorized technicians.
2. The water heater requires plenty of fresh air to work efficiently. Fixed ventilators or air inlets near the heater should never be obstructed or blocked.
3. Check that the gas supply meets the specification (LPG/Natural Gas) given on the heater.
4. Ensure that the water and gas pressure are correct.
5. Do not place the gas water heater near a flammable, explosive or acidic environment.
6. In winter and in freezing temperatures (below 4°C), drain out the water from the heater completely through the drain valve to avoid any damage to the heater.
7. If the water heater is not going to be used for a long time, please drain the water from the heater via the drain valve and remove the batteries from the battery box.

Tools

Water Heater

10m Outlet Pipe

Sprayer

Gas Tube

Screws

Trolley

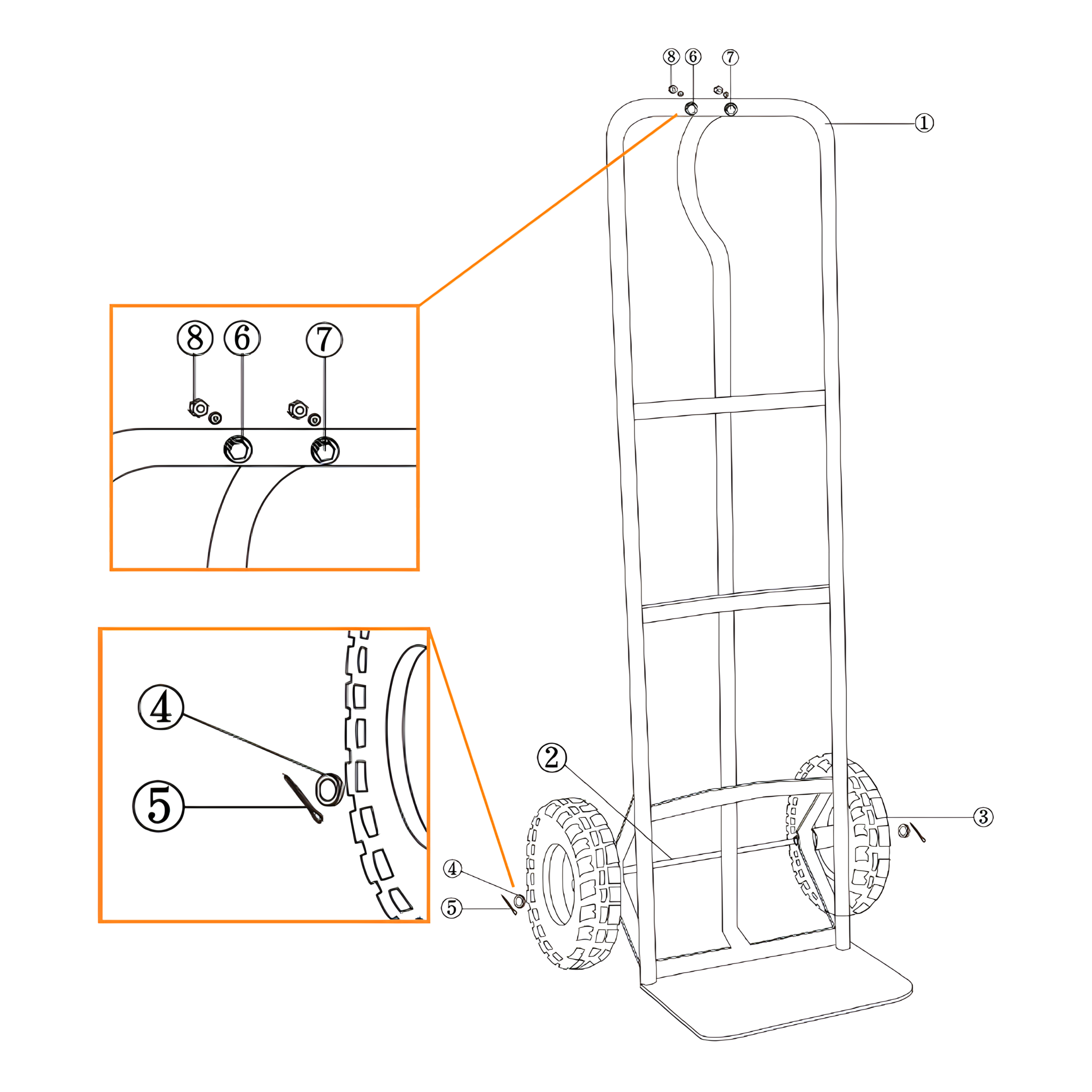

Parts

1Handle

2Wheel

3Axle

4Washer

5Wheel tension pin

6Flat washer

7Bolt

8Nut

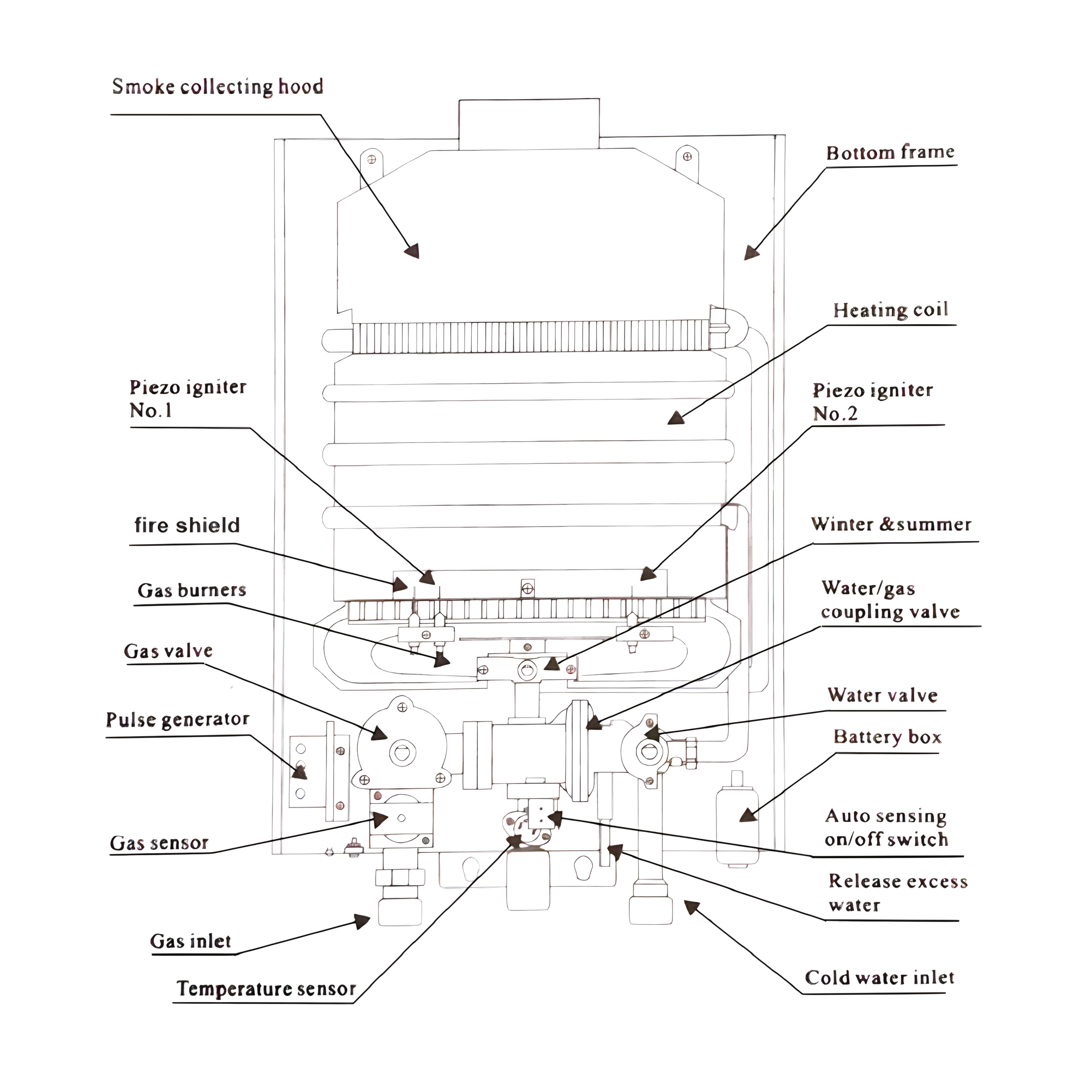

1. Water Heater

1. Attach the wheels

Fix the wheels on the trolley as shown in the diagram under “Parts”.

2. Mount the water heater

Add the gas water heater box on top of the trolley, and keep it in place near the handles of the trolley. Use the provided screws to mount the water heater onto the trolley handles.

3. Check pipe cleanliness

Ensure the gas and water connection pipes are clean and free of any debris.

4. Connect pipes

Connect the gas pipe and the inlet/outlet water pipes as shown in the diagram under “Parts”.

5. Insert the batteries

Insert two D 1.5V in the battery box. Ensure these are thoroughly dry prior to insertion and that they are placed in their corresponding polarities.

6. Check for gas leaks

Before turning the water heater on, always ensure there is no gas leakage from the gas connection.

7. Authorized Personnel Only

The heater must be maintained and checked only by qualified and authorized technicians.

8. Annual Safety Check

The heater must be checked for safe operation annually, regardless of the frequency of use. This is principally to ensure the correct combustion for the main burner.

9. Hard Water Effects

If the heater is used in an environment with prevalent hard water, over time a reduction in the hot water temperature or hot water flow may occur. This is due to scale formation.

10. Preventing Scale Formation

To reduce scaling, it is recommended to use the water and gas control knob to obtain the desired water temperature, instead of mixing cold and hot water together.

11. Scale Removal

Scaling can only be removed by authorized technicians.

12. Start water flow

Open the water tap. Once water starts flowing, multiple sparks will ignite the main burner.

13. Retry ignition if needed

If the burner does not ignite, close the water tap and repeat the process. This can happen due to some air in the gas pipe.

14. Shut off water

To turn it off, close the water tap.

15. Gas regulator control button knob

Turn the gas button knob clockwise to increase the gas supply and anti-clockwise to decrease the gas supply to the main burner.

16. Water regulator control button knob

To get hotter water, reduce the flow rate by turning the button knob clockwise.
To get colder water, increase the flow rate by turning the button knob anti-clockwise.
The temperature of the water can be controlled by turning the gas control button knob and/or water control button knob accordingly.

17. Summer and winter button knob

Regulate the quantity of fire rows by the use of winter-summer switch. In summer, shut off 1/4 fire rows to save 40% energy.

18.

Unsuccessful ignition

Main gas cock and/or cold water tap is not opened\

-> Open main gas cock and/or cold water tap

Dry cell used up\

-> Replace batteries

Gas pipe is full of air\

-> Repeat the operation

Non availability of gas supply\

-> Replace the LPG bottle or inform the natural gas supply to check

Low water pressure (less than 0.3 bar)\

-> Inform the natural gas supplier to check the water pressure and increase it

19.

Heater does not start / Fire goes off during operation / Abnormal flame and smell / Flame turns yellow with smoke / Abnormal ignition noise

Water inlet filter is clogged\

-> Clean the filter

Gas cock is half open\

-> Call the technician

Gas pressure is too low\

-> Call the technician

Blocked burners\

-> Deliver it to the nearest service centre

20. Resolution Guide

What do I do if there are missing parts from my order?

If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.

For all other issues, please contact our Customer Support Team.

Tel: 01347 878 887
Email: help@monstershop.co.uk
