Instructions by

monstershop

Standing Desk - 120/140 cm

214716, 214717

Safety Advice

Please read through the Safe Working Practice to ensure prevention of injury or damage to the product.

Do not use this product for anything other than its intended purposes.
Ensure you have read and fully understood the instruction manual and safety advice before using this product.
Assemble the desk according to the provided technical specifications. Re-tighten all screws periodically after initial assembly and continue to do so regularly to ensure long-term stability and safety.
Only use the desk indoors, and keep it away from direct sunlight or environments with high temperatures, as these conditions may damage the materials and electrical components.
Do not use the desk in environments with corrosive gases or excessive dust, and keep all electrical components (including the power supply and controller) away from any liquids to avoid electrical hazards or malfunction.
Non-professionals must not disassemble or modify any part of the desk, especially the electrical components, to prevent the risk of electric shock or damage to the product.
Keep children and pets away from the desk, its electrical controls, and moving parts at all times to prevent injury or electric shock.
Do not stand, sit, or place excessive force on the desk frame, as it is not designed to support body weight.
Ensure the total weight of objects placed on the desk does not exceed the specified weight capacity of 80kg to maintain stability and proper functionality.
Avoid placing objects taller than 500mm underneath the desk, as they may obstruct the desk’s movement and cause damage or malfunction during height adjustments.
Always unplug the desk from the electrical outlet during maintenance or if it will not be used for extended periods.
Always maintain a clear and hazard-free workspace around the desk during assembly and use. Do not leave tools or packing materials in the workspace, and be cautious with plastic packaging materials, which can pose a risk of suffocation or strangulation if children access them.
The desk should not be operated continuously for more than 2 minutes at a time. After each 2-minute operation period, allow an 18-minute break to avoid overheating or excessive strain on the motor.
Regularly inspect the desk’s power cable and electrical components for signs of wear or damage. If any defects are found, stop using the desk immediately and contact a qualified technician for repairs.
The desk operates on a power supply of 110-240V and 50/60Hz. Ensure your power source is compatible with these specifications before connecting the desk to the electrical outlet.
When adjusting the desk height, ensure that no obstacles are in the path of the moving components to prevent damage or personal injury. Always be aware of the surroundings to avoid trapping fingers, cables, or other objects.
Keep the noise level below 50dB while operating the desk to avoid disturbance or potential hearing risks in quiet environments.
The desk has three memory settings for adjusting the height. Use these settings appropriately to avoid repetitive manual adjustments and ensure optimal ergonomic positioning.
If you plan to move or transport the desk, retain the original packaging to ensure safe transportation and protect the desk from damage.
The desk is equipped with a motor that moves the surface at a speed of 20mm/s. Do not attempt to force the desk to move faster or slower manually, as this may damage the motor or cause injury.
Avoid plugging in or unplugging the desk with wet hands to reduce the risk of electric shock.
Ensure the desk is placed on a flat, stable surface to prevent tipping or instability. Regularly check the surface to ensure the desk remains level and secure.
Turn off and unplug the desk at the end of each day or when it will not be in use for extended periods to reduce energy consumption, prevent electrical hazards, and prolong the lifespan of the desk’s motor and electrical components.

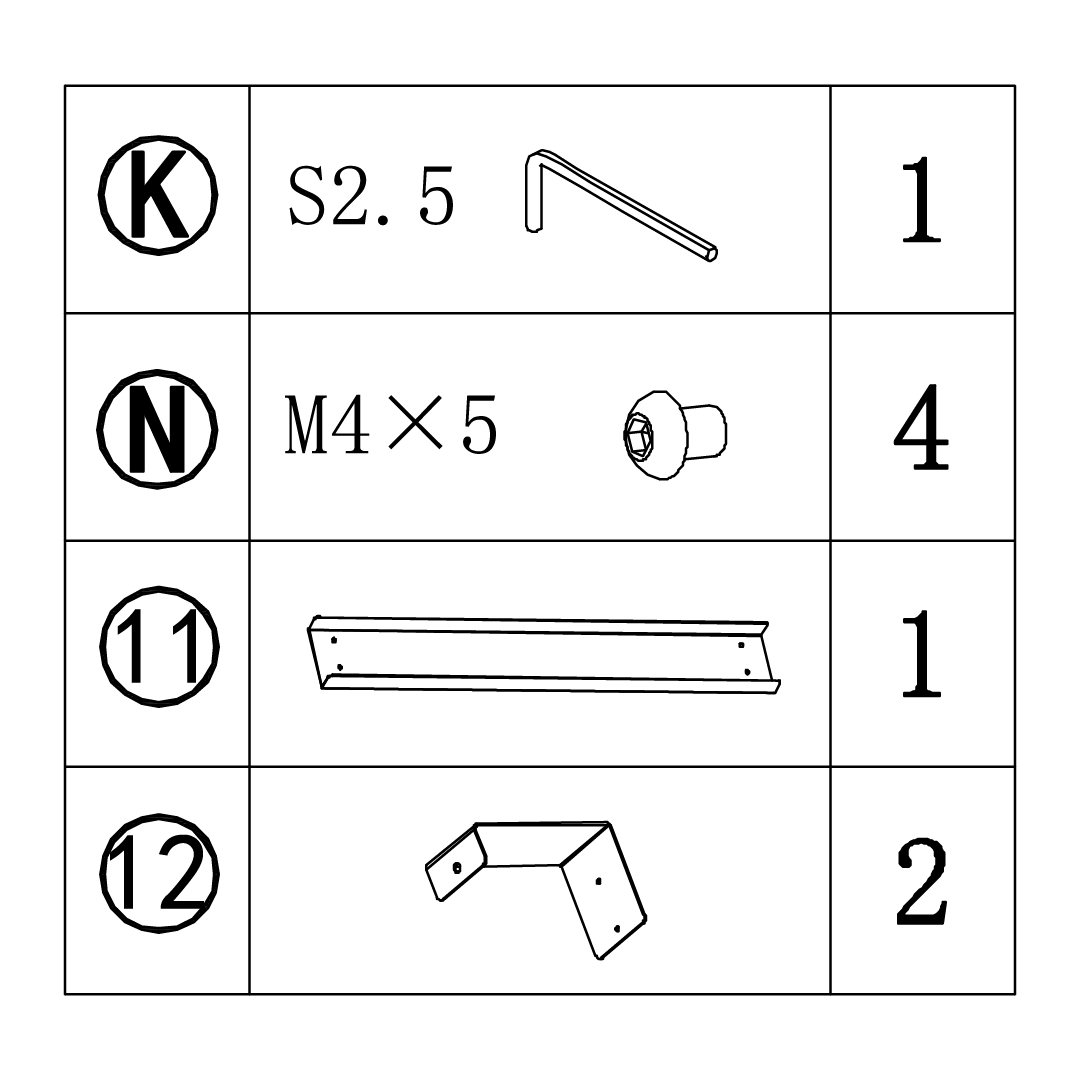

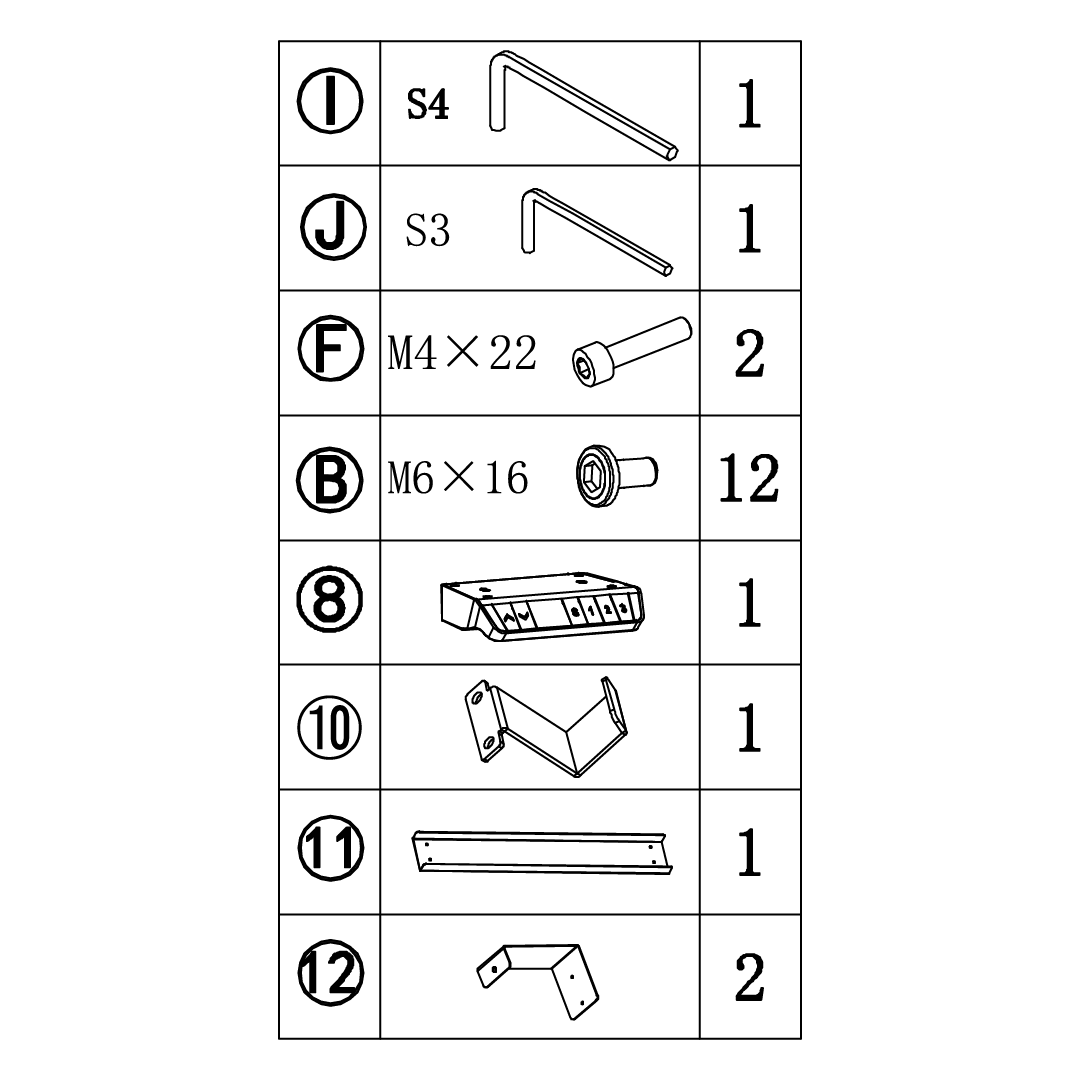

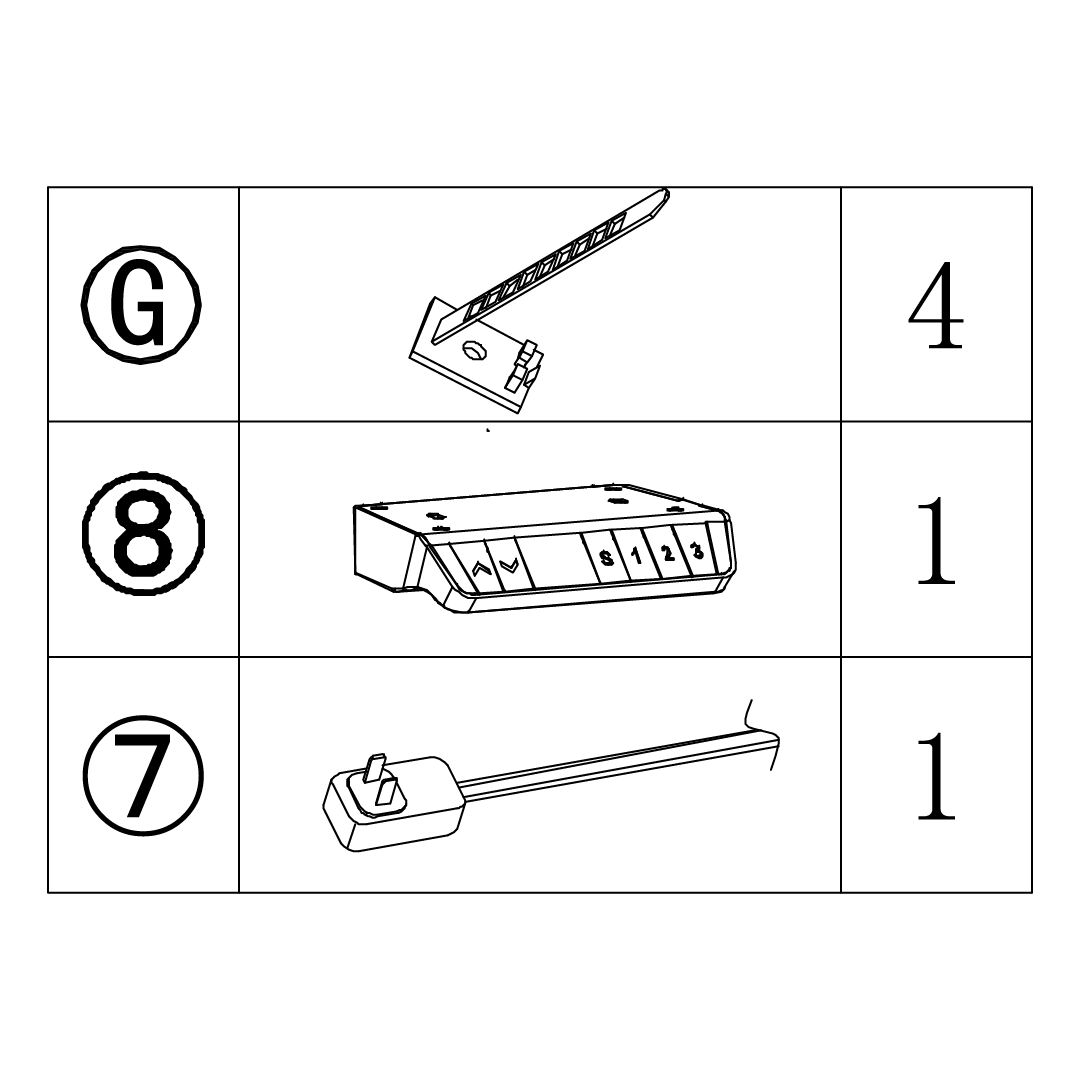

Materials

Part 1 - Desk Leg

Part 2 - Desk Leg

Part 3 - Desk Feet

Part 4 - Crossbar

Part 5 - Connecting Pole

Part 6 - Side Bracket

Part 7 - Plug

Part 8 - Control Box

Part 9 - Motor

Part 10 - Wire Tray Bracket

Part 11 - Wire Tray

Part 12 - Brackets

Part A - M6X30

Part B - M6X16

Part C - M6X12

Part D - M6X16

Part E - M6X50

Part F - M4X22

Part G - Cable Clip

Part H - S6 Allen Key

Part I - S4 Allen Key

Part J - S3 Allen Key

Part K - S2.5 Allen Key

Part L - M5X40

Part M - 5X9X18

Part N - M4X5

Part O - M6x8

1. Operating Instructions

Before using the desk for the first time, please follow these instructions to reset the desk (RST mode). Resetting the desk can help with certain error codes; please check the error code table.

1. To reset the desk, press and hold the “DOWN” key until the motor stops, then release the key.
2. Press the “DOWN” key again, and hold it for at least 5 seconds to enter the reset mode.
3. Keep pressing the “DOWN” key until the buzzer beeps, which indicates that the reset was successful.

Please do not release the key early, as this will interrupt the reset of the desk.

2. Up and Down Keys

When the “UP” key is pressed and held, the desk rises until it reaches the highest point possible.
When the “DOWN” key is pressed and held, the desk lowers until it reaches the lowest point possible.
When the “UP” or “DOWN” key is pressed only for a short time, the desk rises/lowers according to how long the key is pressed.

3. Setting Memory Height

The system allows for 3 different memory heights to be stored at the same time.

1. To have the system memorise a specific height, please start by raising/lowering the desk to the desired position.
2. Then press the “S” key. The Digital Control Panel will show “S-”, and “-” will flash.
3. Now you can press any key number 1/2/3 to memorise the current desk position.

Whenever you want the desk to reach a memorised height, you only need to press the corresponding number key. To interrupt this process, press any key.

4. Set Max and Min Height Limits

1. Bring the desk to the height you would like to set as either the highest point (MAX) or the lowest point (MIN).
2. Then press and hold the “UP” and “DOWN” keys at the same time for 5 seconds, until you hear a buzzer sound, indicating that the chosen height has been saved successfully as your MAX/MIN.

To delete the memorised height limits, you can either reset the system entirely or let the desk rise/lower to its height limit (MAX/MIN) and press and hold the “UP” and “DOWN” keys at the same time for 5 seconds, until the buzzer sound indicates that the height limit has been deleted successfully.

5. Factory Reset

When the system needs to be restored to factory settings, press and hold “UP” and “DOWN” at the same time for 10 seconds to hear a long buzzer prompt.

Now, the parameters are restored to factory settings, and the system is forced to complete the reset.

6. Operating Instructions

7. Lock and Unlock

Lock: Press and hold “S” and “UP” at the same time for 5 seconds; when the Digital Control Panel shows “Loc”, it means that the system has been locked, so the desk cannot be raised or lowered.
Unlock: Press and hold “S” and “DOWN” at the same time for 5 seconds; when the Digital Control Panel changes from “Loc” to the normal display, it means the system has been unlocked.

8. Set Timer

Press the “1” and “3” buttons on the digital control panel to display “x.xh” on the Digital Control Panel.
You can then use the “UP” or “DOWN” buttons to adjust the time in 0.5-hour increments.
The system will automatically exit this setting mode after 2 seconds.
Once the digital display turns off, a flashing decimal point will indicate that a timer is running.
When the set time is reached, the buzzer will sound five times, and the Digital Control Panel will automatically wake up.

9. Automatic Testing

The Digital Control Panel allows the system to run an automatic test cycle, where it operates for 2 minutes and then stops for 18 minutes. This test cycle moves between the storage positions S1 and S2.

To enable automatic operation in this mode, you need to set the storage position control to active by setting S-6 to 1.
Once activated, the system will cycle back and forth between S1 and S2 for 2 minutes, pause for 18 minutes, and repeat this process indefinitely.
To enter this mode, press and hold the “UP,” “DOWN,” and “S” buttons simultaneously for 2 seconds.
When all the decimal points on the display light up, it indicates the system is in automatic test mode.
To exit, press and hold the “UP,” “DOWN,” and “S” buttons again for 2 seconds.

10. Setting Internal Parameters

1. To access the settings menu, press and hold the “S” button on Digital Control Panel for 5 seconds.
2. When “S-x” appears on the display and the “x” begins to flash, it indicates the parameter group number.
3. Press “S” again to enter the selected parameter group and adjust the relevant settings.
4. Use the “UP” or “DOWN” buttons to switch between parameter groups. After adjusting the settings, press “S” to return to the normal operating interface.

The available parameter groups are:

S-1: Determines the unit of measurement: 0 for metric (cm) and 1 for imperial (inches)
S-2: Adjusts the sensitivity level for obstacle detection when moving downward. A setting of 0 turns off the sensor, while 1 is the least sensitive and 8 is the most sensitive.
S-3: Sets the sensitivity level for obstacle detection when moving upward. A value of 0 disables the sensor, while 1 is the least sensitive and 8 is the most sensitive.
S-4: Configures sensitivity for detecting obstructions while moving downward, with the same scale as above (0 for off, 1-8 for sensitivity).
S-5: Sets the adjustment increments, measured in centimetres.
S-6: Controls the desk’s movement behaviour when using the preset position feature. A value of 0 requires holding the preset button to move the desk, and the desk stops when the button is released. A value of 1 makes the desk automatically move to the preset position when the button is pressed, and any button can stop it.
S-7: Adjusts the duty cycle for desk operation. A setting of 0 disables the 2-minute-on, 18-minute-off cycle, relying only on temperature monitoring to protect the control box. A setting of 1 enables the 2-minute/18-minute duty cycle.
S-8: Configures the sensitivity to detect desk tilt, helping prevent uneven leg movement caused by issues like a damaged screw rod. A value of 0 turns off tilt detection, while values from 1 to 8 correspond to an inclination angle range of 0.5° to 4°.

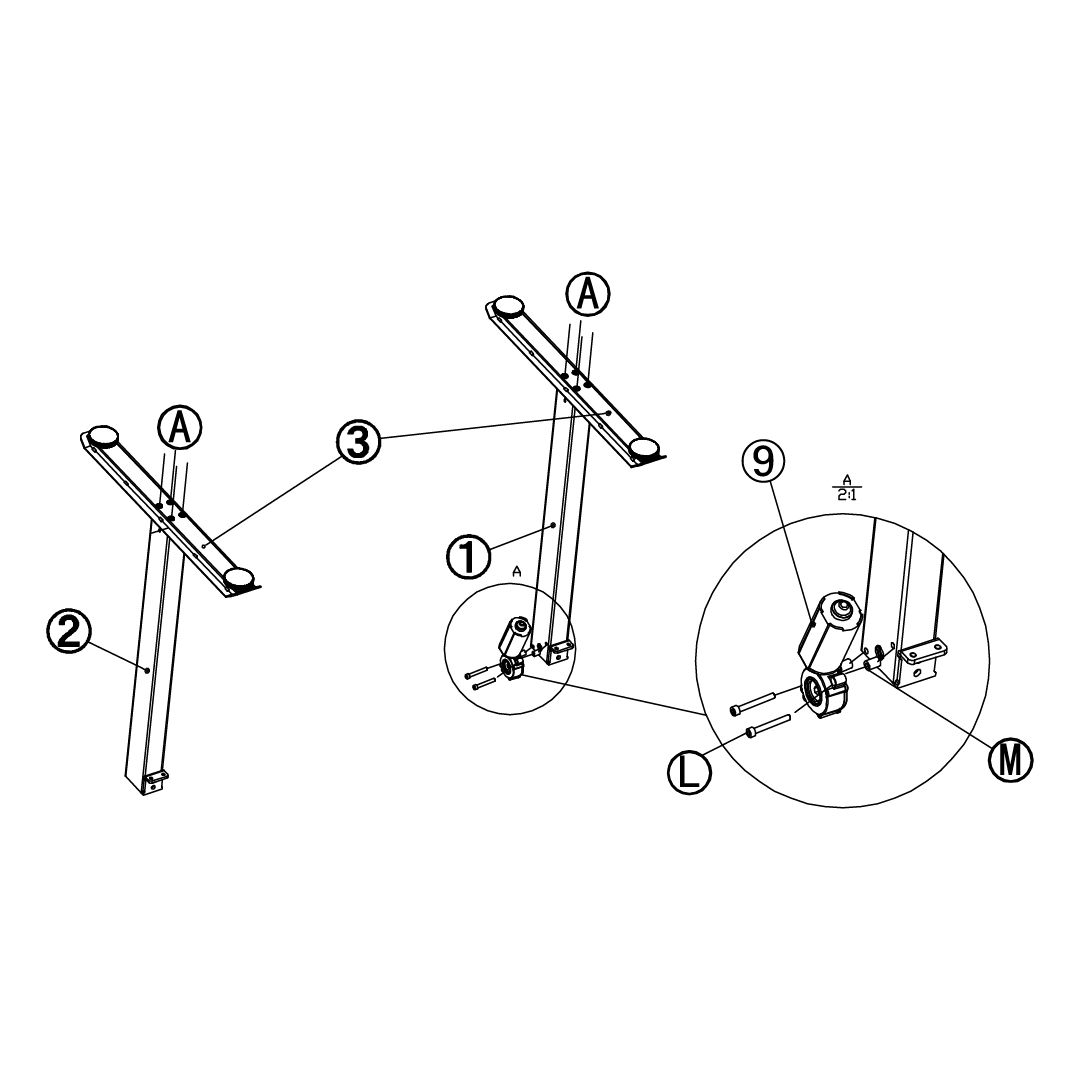

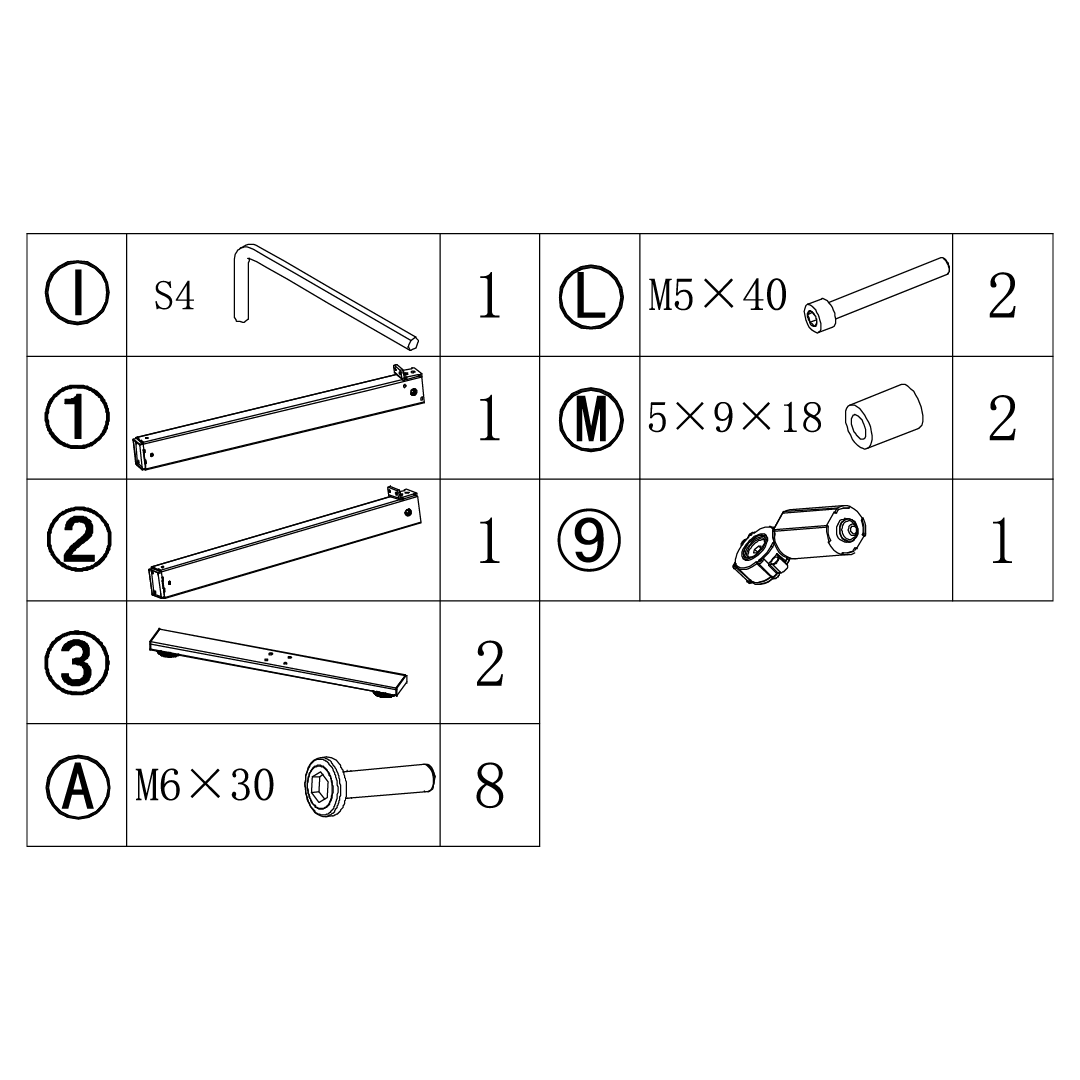

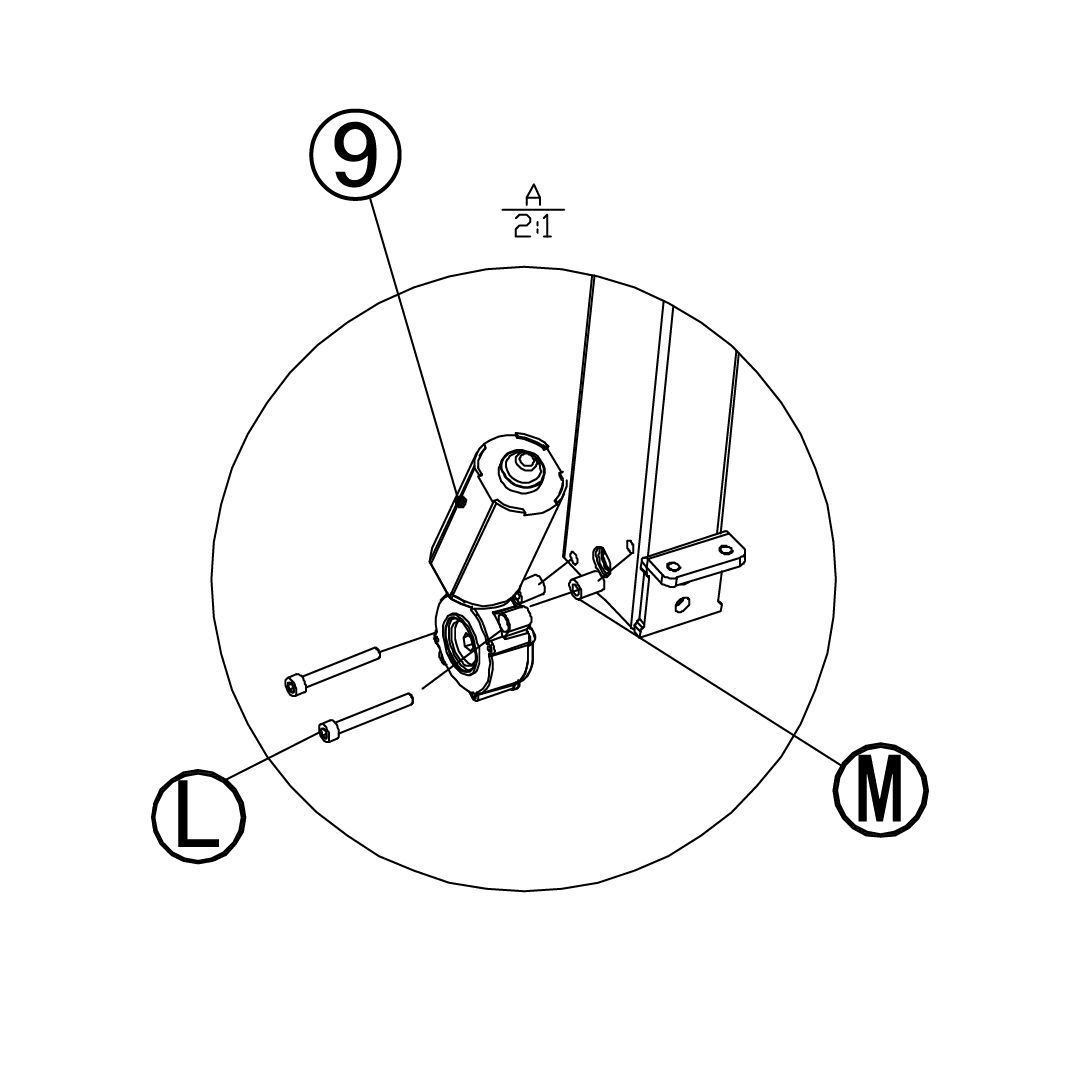

11. Assembly Instructions: Step 1

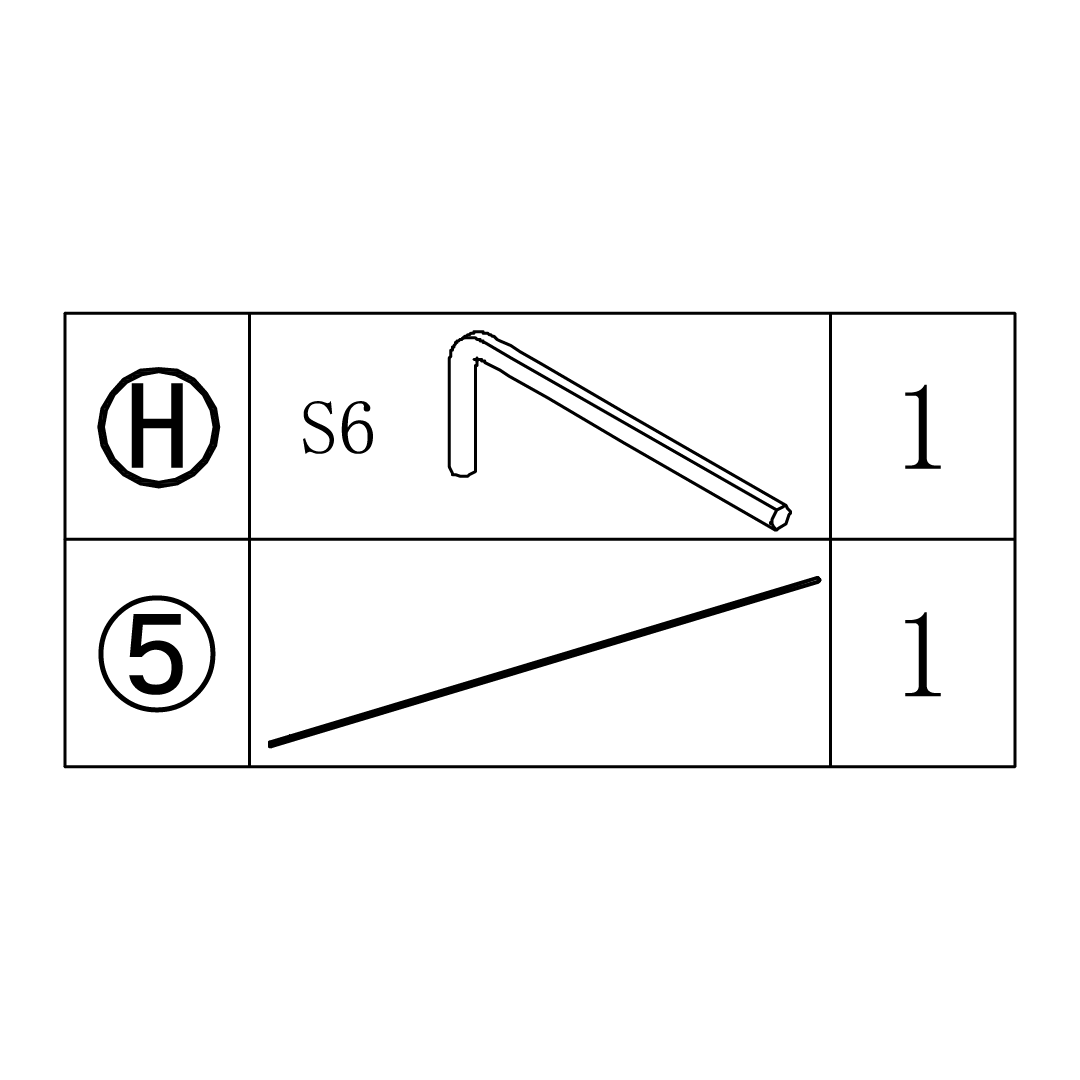

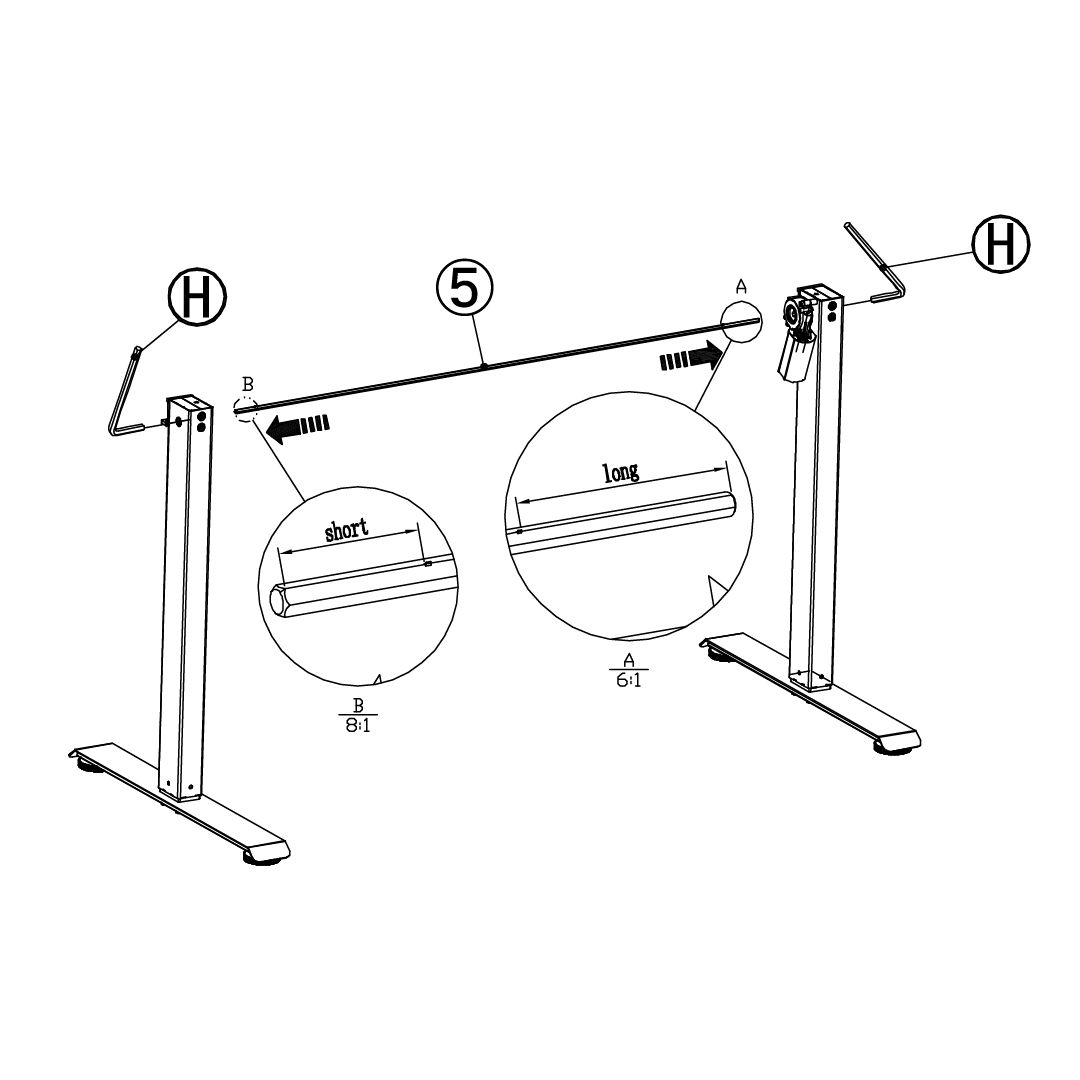

12. Assembly Instructions: Step 2

When inserting (5), gently rotate (H) and ensure you insert it fully.

Two people may be needed for this step, to prevent the table legs from toppling mid-assembly.

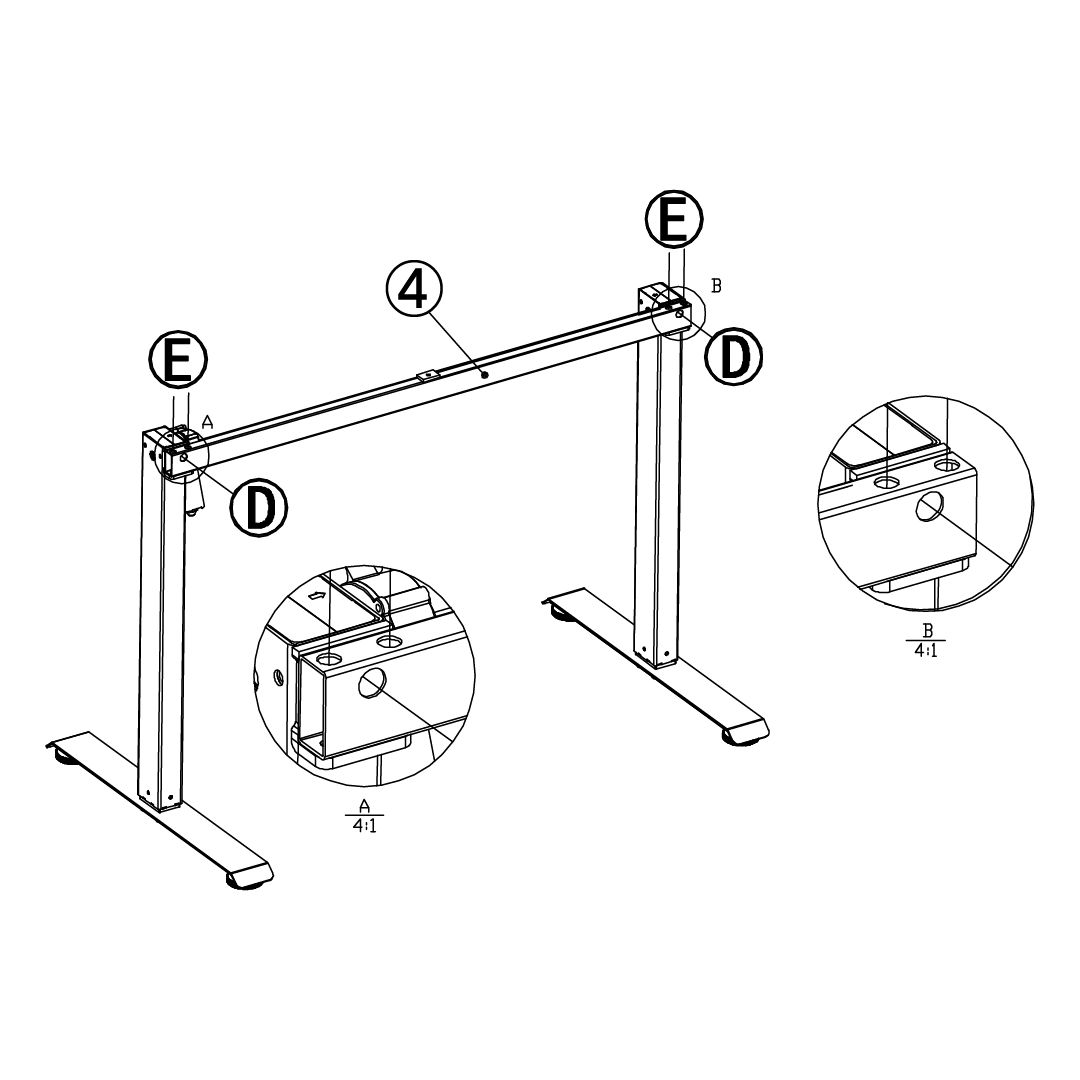

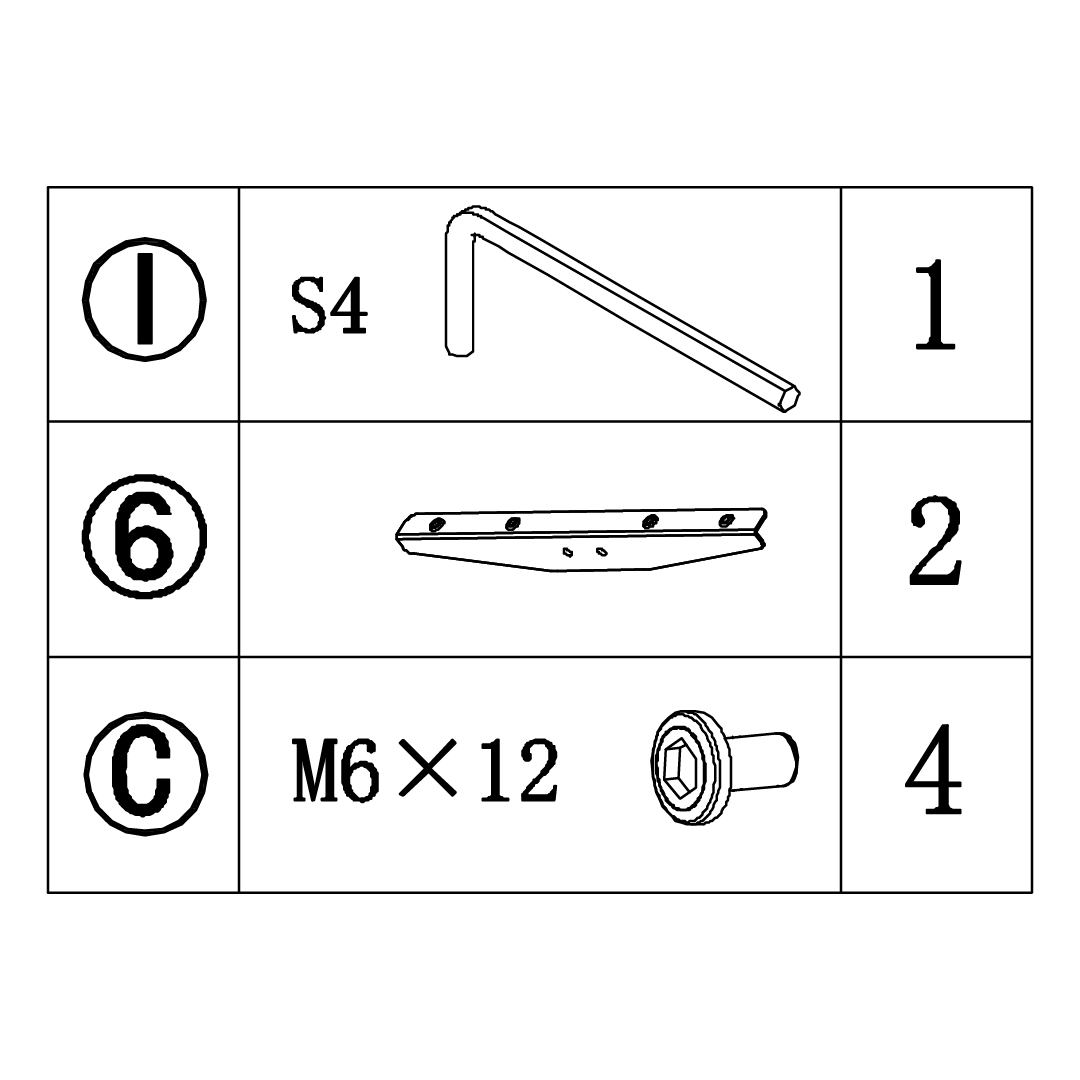

13. Assembly Instructions: Step 3

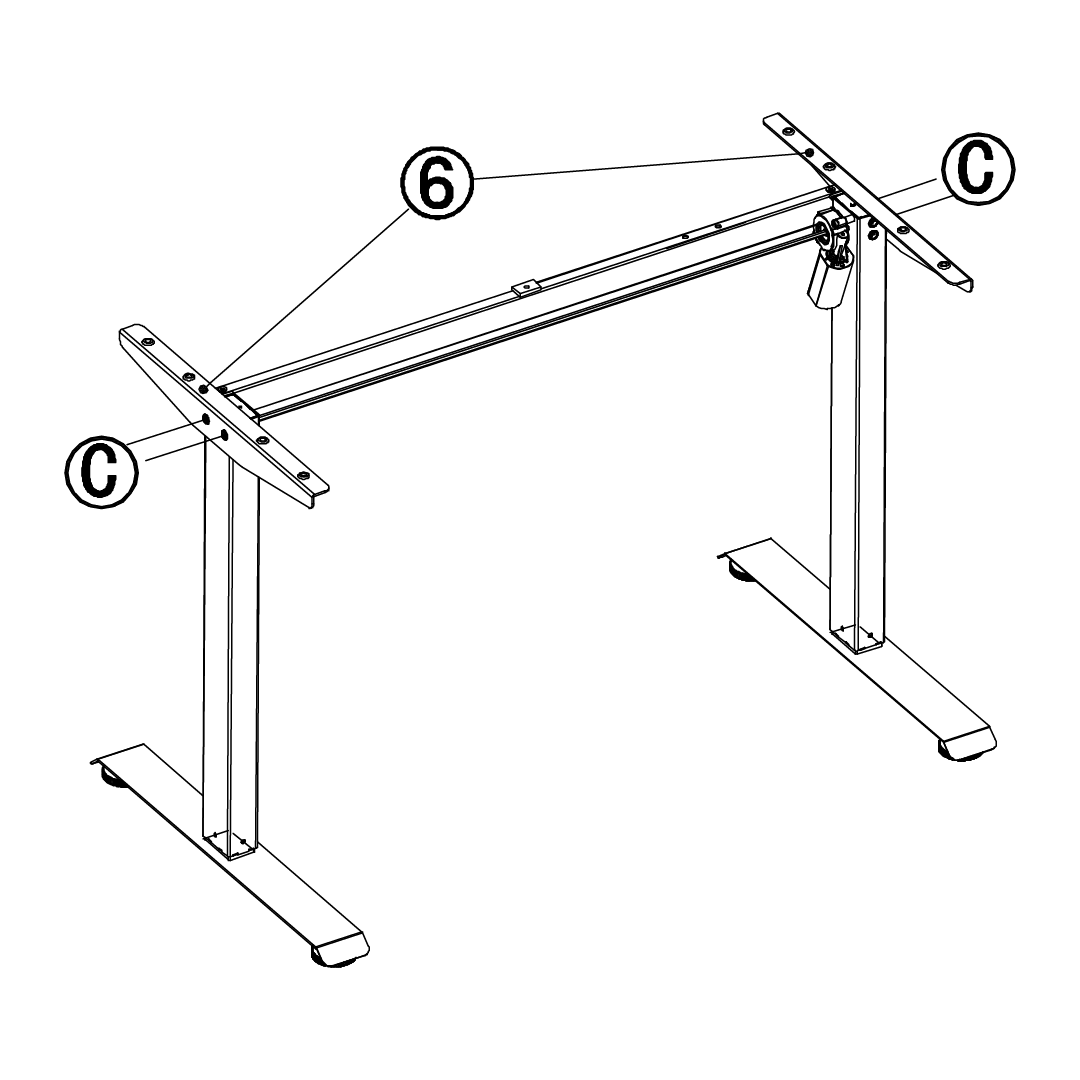

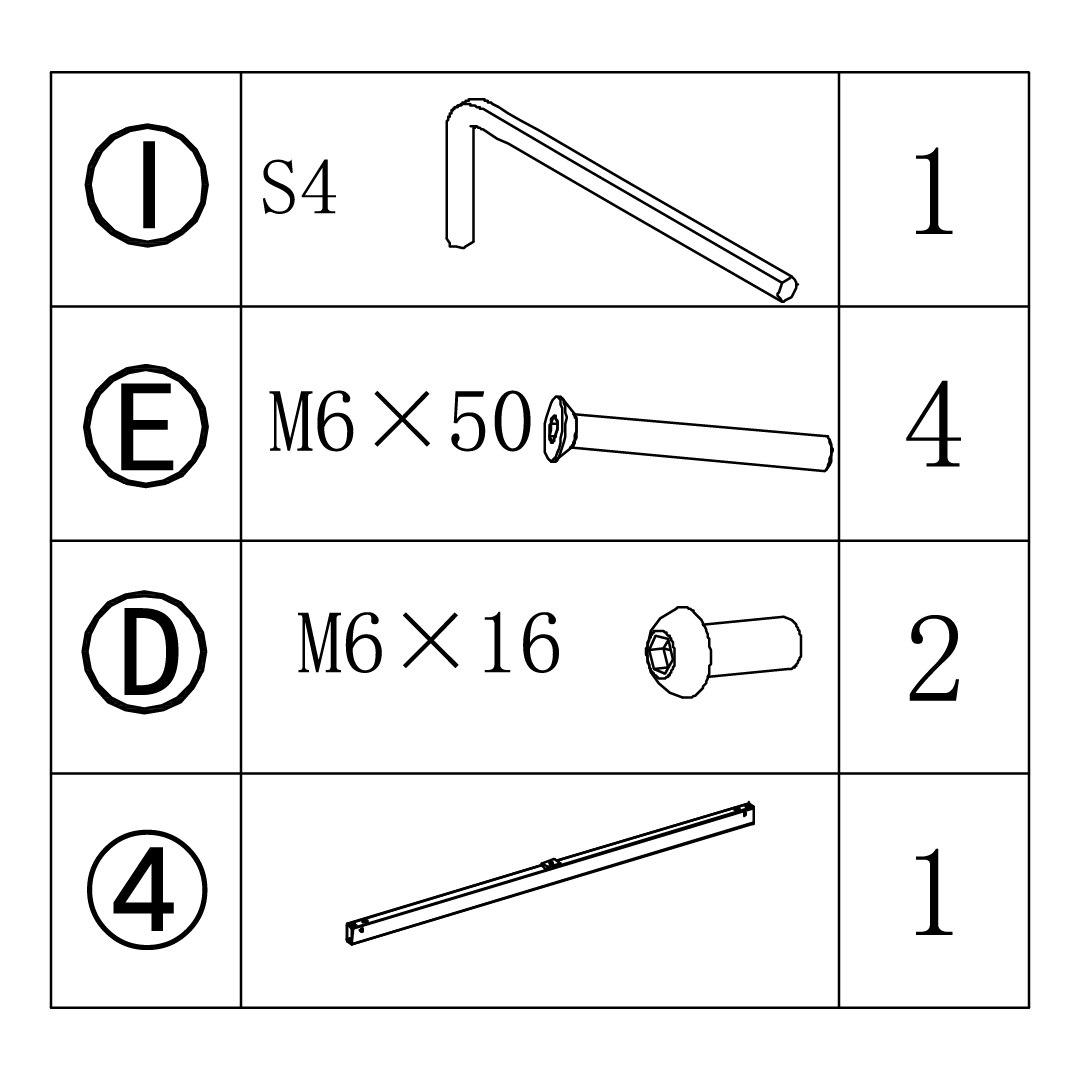

14. Assembly Instructions: Step 4

15. Assembly Instructions: Step 5

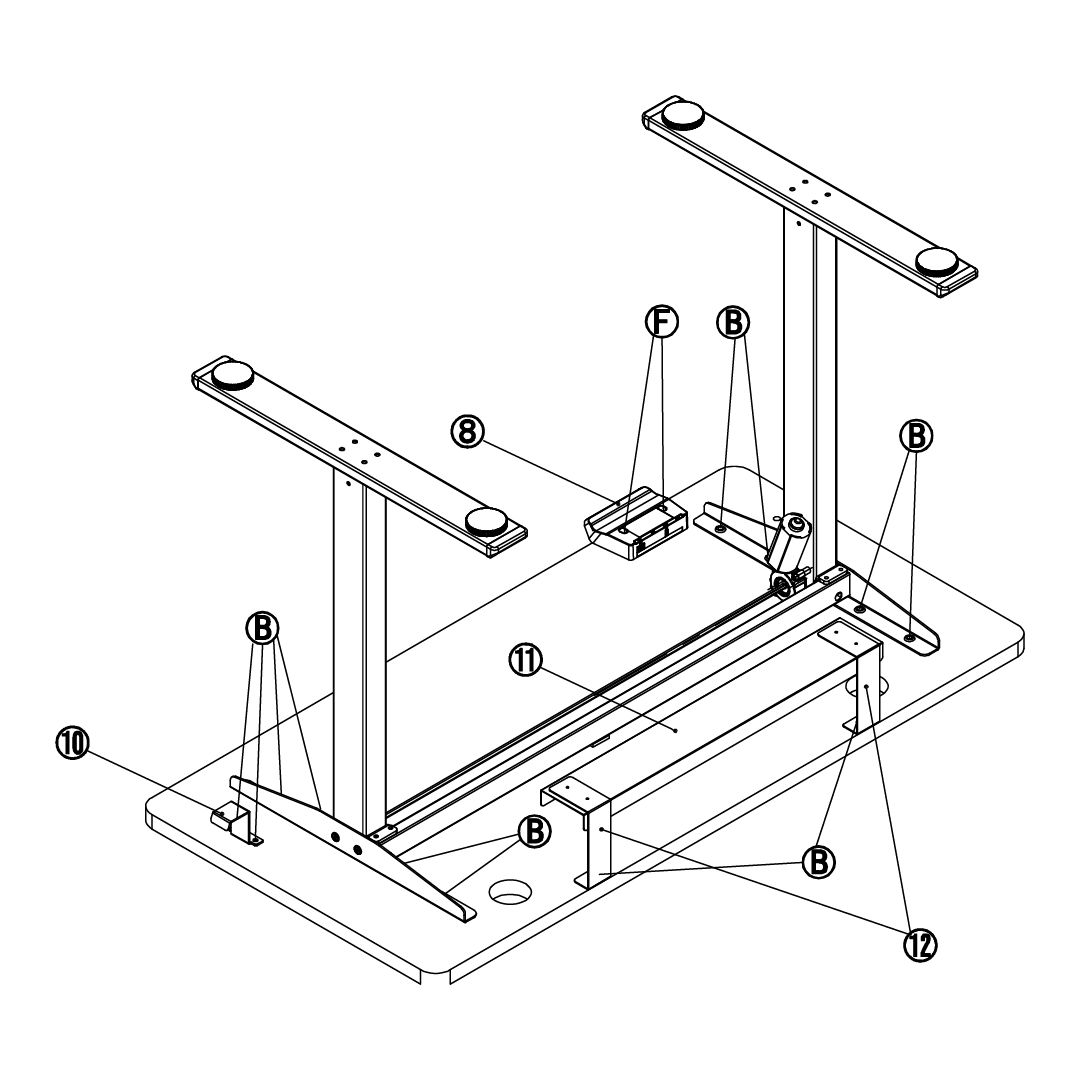

16. Assembly Instructions: Step 6

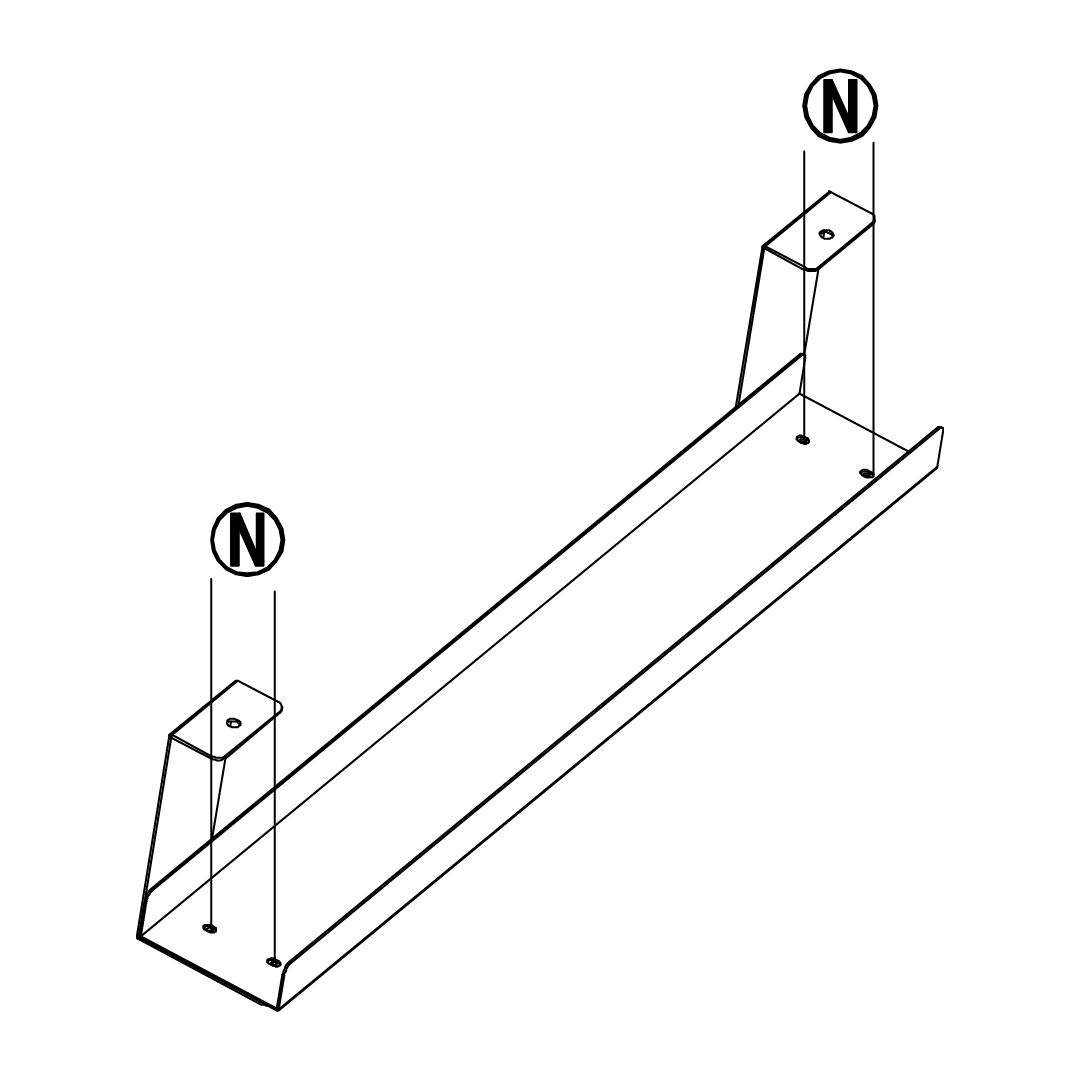

17. Fitting the Standing Desk Draw

Secure the Standing Desk Draw to the Standing Desk by screwing Part O into the pre-drilled holes on the underside of the desk

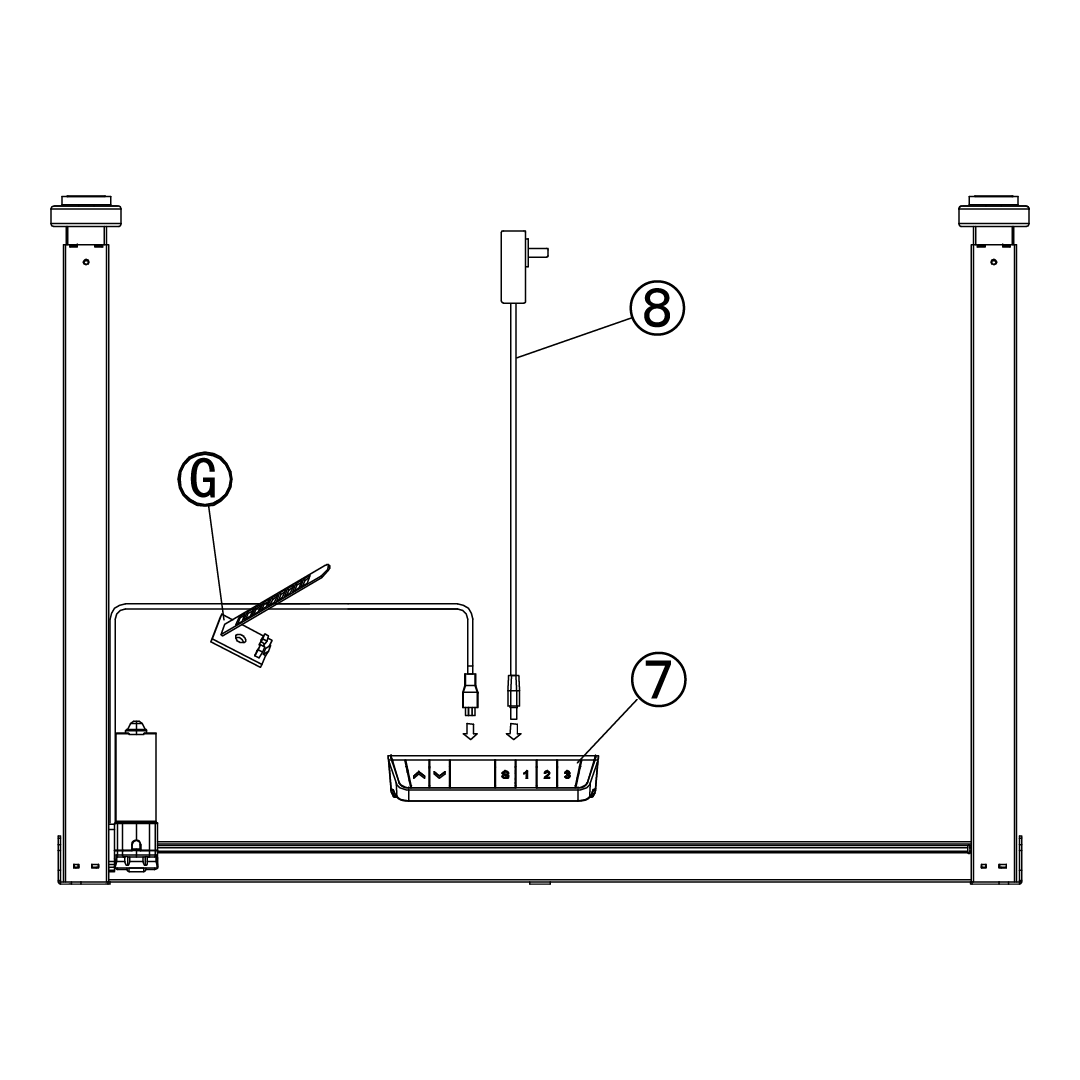

18. Connection Diagram

19. Troubleshooting

WHAT DO I DO IF THERE ARE MISSING PARTS FROM MY ORDER?

If there appears to be any part missing from your order, contact our friendly and helpful Customer Support Team within 7 days of receipt.

MY DESK IS GIVING ME AN ERROR CODE, WHAT DOES IT MEAN?

Please contact our Customer Support Team if you require assistance with an error code.

E1 - Mains voltage exceeds 45V: Check main supply power
E2 - The height deviation between the screw rods exceeds 1cm: Reset the system again
E4 - System or Digital Control Panel panel error: Check Digital Control Panel cable
E5 - Stops when encountering resistance: Release the key and restart
E6 - The main power supply does not work/the voltage is lower than 20V: Replace the main power supply, or check the main power supply cable
E7 - Protection when main power supply is running/the voltage is lower than 20V: Power on again
E8 - Desk tilts when running: Reset the system again
HOT - Power supply temperature is too high/desk runs for longer than 2 minutes in 18 minutes: Wait for power supply temperaure to cool down/let the system cool down for 18 minutes
E11 - Motor 1 not connected: Check the connection cable
E12 - Motor 1 current sampling channel error: Replace the control board
E13 - Motor 1 phase loss/phase cable is not connected: Check the motor phase cable connection for any issues.
E14 - Motor 1 hall error/hall cable is not connected: Check the hall signal/replace connection cable
E15 - Motor 1 internal shortcircuit: Replace the motor
E16 - Motor 1 stall: Reset the system again
E17 - The running direction of motor 1 is wrong: Replace the motor cable/hall cable
E18 - Motor 1 load is too large/overload: Reduce the load
E21 - Motor 2 not connected: Check the connection cable
E22 - Motor 2 current sampling channel error: Replace the control board
E23 - Motor 2 phase loss/phase cable is not connected: Check the motor phase cable connection for any issues
E24 - Motor 2 hall error/hall cable is not connected: Check hall signal/replace the connection cable
E25 - Motor 2 internal shortcircuit: Replace the motor
E26 - Motor 2 stall: Reset the system again
E27 - The running direction of motor 2 is wrong: Replace the motor cable/hall cable
E28 - Motor 2 load is too large/overload: Reduce the load
E40 - The Digital Control Panel keeps disconnecting: Check the connection cable
E41 - The serial signal is wrong: Check the connection cable/replace the Digital Control Panel
E42 - Memory error: Replace the Digital Control Panel
E43 - Sensor error (enabling desk to stop when encountering resistance): Replace the Digital Control Panel

FOR ALL OTHER ISSUES, PLEASE CONTACT OUR CUSTOMER SUPPORT TEAM.
